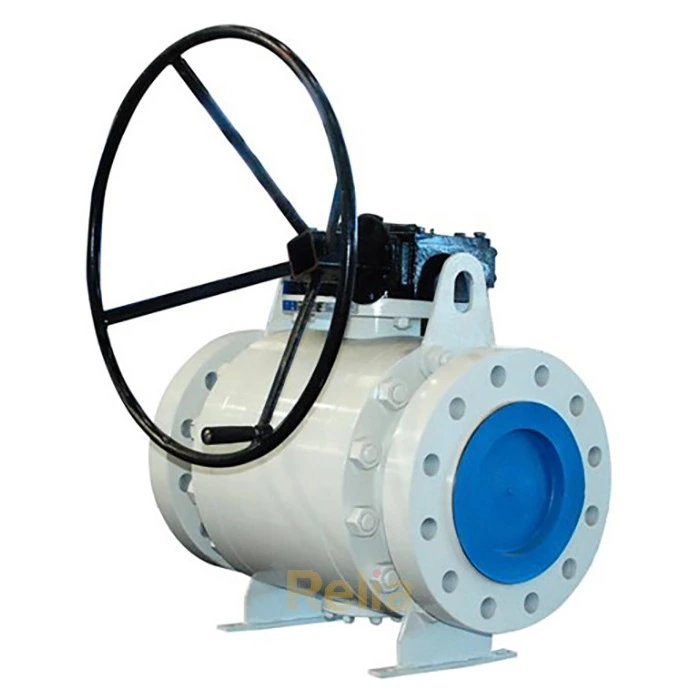

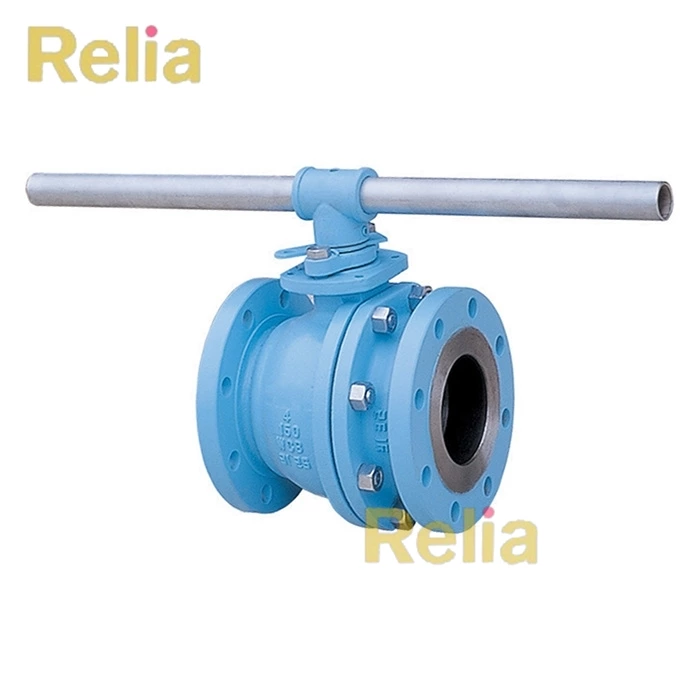

Soft Seated Ball Valve
Soft-seated ball valves feature zero leakage, a bi-directional seal, and easy operation. They are available in floating and trunnion-mounted designs. Soft seated ball valve serves oil, gas, and chemical industries etc.
Soft seats are generally made of thermoplastic materials like PTFE. They're great for applications where chemical compatibility is important, and where the tightest seal is key.
Soft seat:
PTFE, Devlon, Delrin, TFM, PTFE, RPTFE, PEEK, POM, PCTFE, Nylon, PPL
BALL SEAT DESIGN
- Maintains tight contact between ball/seat regardless of valve installation orientation
- Low coefficient of friction
- Excellent sliding and running properties
- Optimal selection of flexibility and stiffness of both ball and seat rings
- Soft Seat Options
CONSTRUCTION
- One Piece Body
- Split Body
- Blow-Out Proof Stem
DESIGN & TESTING
- All available international standards according to API 6D, API 598, EN 12266, MSS SP82, ISO 5208, API 6A
FIRE SAFE
- Design and Certified API 607, API6 Fa, ISO 10497
OPTIONS
- Extended Bonnet
- Lip Seals
- Single or Double Piston Design (SPE-DPE)
- Injection Sealing Seat; Packing
- Local CRA Overlay
- Heating Jacket
- Drain; Vent
- AED Seals
- DBB- DIB1 – DIB2 as per API6D
- 2-way
- 3-way
- 4-way
- Mechanically Linked
FUGITIVE EMISSION
- ISO EN15848-1
- ISO EN15848-2
END CONNECTIONS
- Flanged
- BW
- SW
- THR
- HUB
Leave Us Your Info
Could you please kindly fulfill the following information when enquiring:
Valve type (ball, gate, globe, check etc.), valve size, pressure class, valve material, and end connection (flanged, butt welding etc.)
