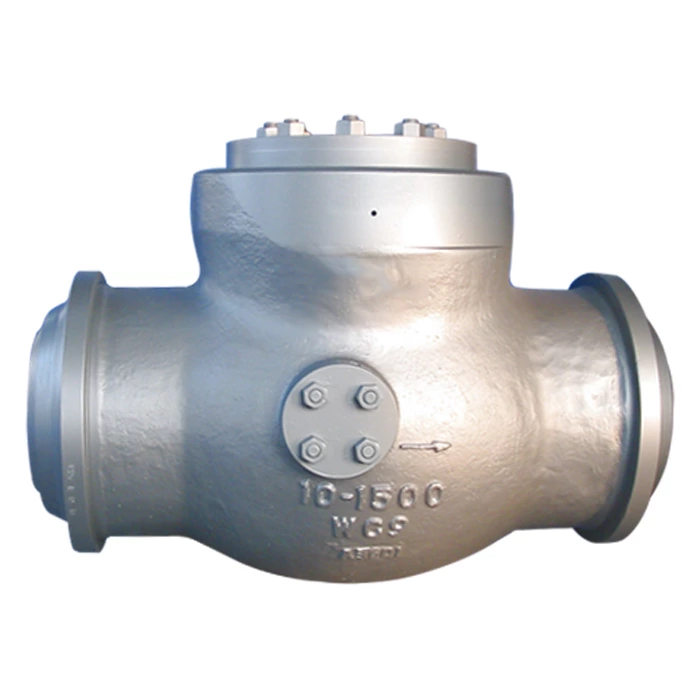

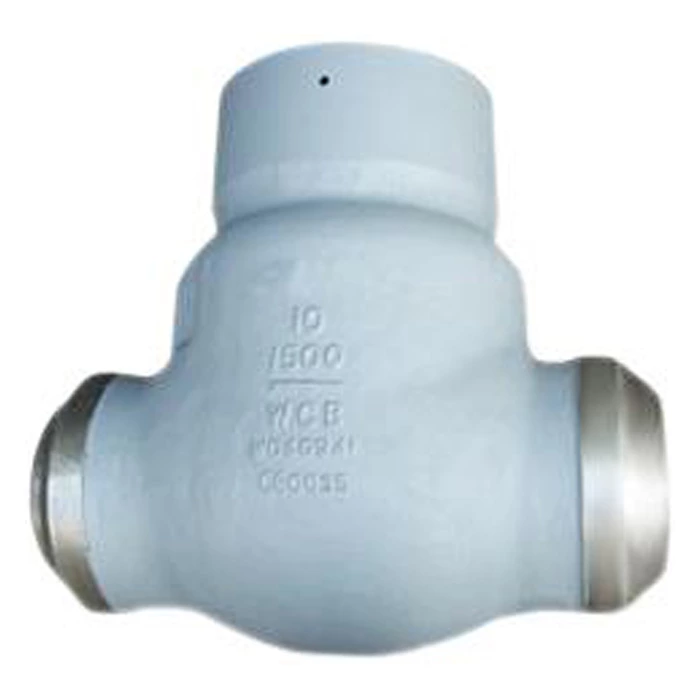

10 Inch Check Valve
10 inch check valve (DN250) meets API 594, BS 1868, API 6D, ANSI/ASME B16.10, and B16.34. Contact us for 10 inch check valve price.
- Valve Type
- Swing Check, Wafer Check
- Size
- 10" (DN250)
- End Connections
- Flanged
- Unit Price
- $650-6800
- Origin
- China
TAGS:

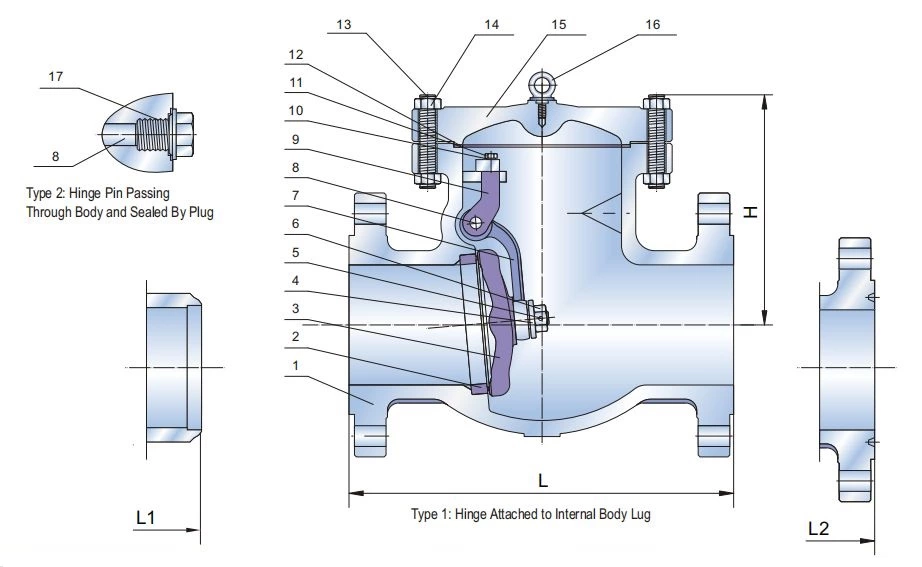

10 Inch Swing Check Valve Drawing
Dimension and Weight
| Size | inch | 10" | 10" | 10" | 10" | 10" | 10" |
| mm | DN250 | DN250 | DN250 | DN250 | DN250 | DN250 | |
| Pressure | ANSI | Class 150 | Class 300 | Class 600 | Class 900 | Class 1500 | Class 2500 |
| L/L1 | mm | 622 | 622 | 787 | 838 | 991 | 1270 |
| L2 | mm | 635 | 638 | 790 | 841 | 1000 | 1292 |
| H | mm | 370 | 385 | 490 | 664 | 756 | 851 |
| Weight RF | kg | 220 | 307 | 673 | 810 | 1550 | 3750 |
