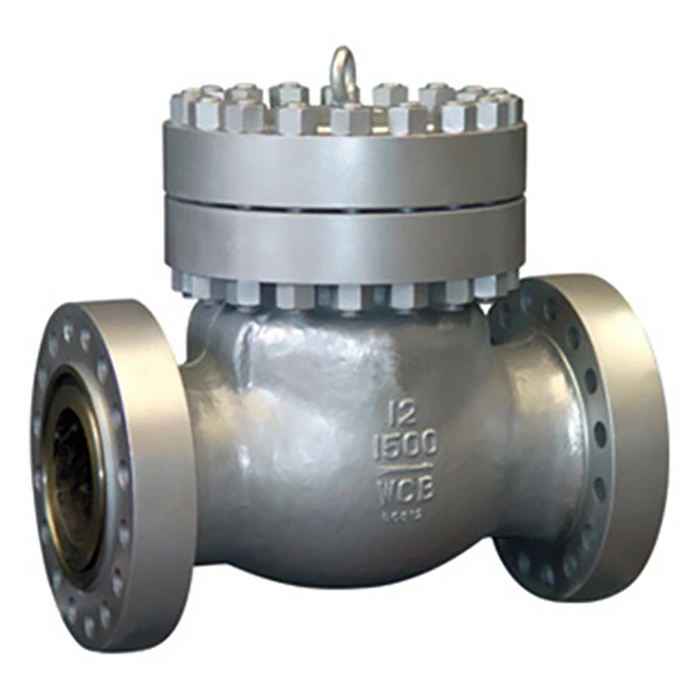

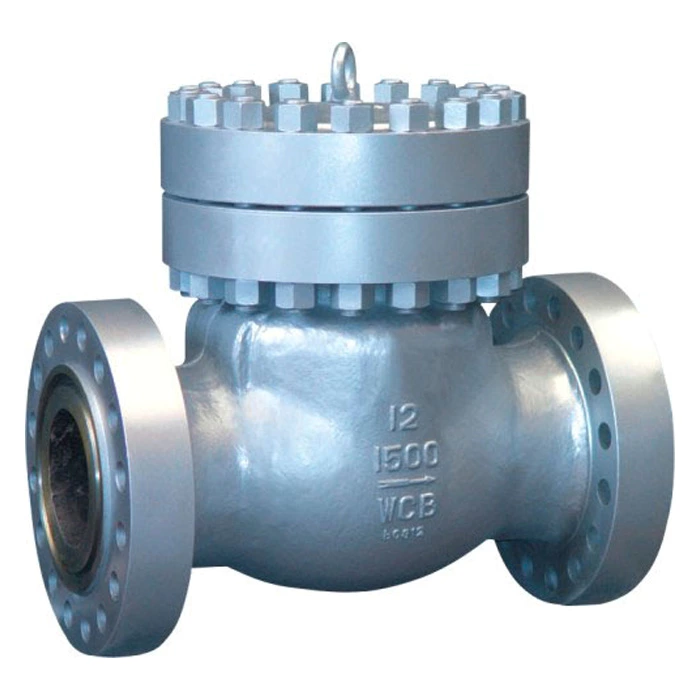

12 Inch Check Valve
12 inch check valve (DN300) is compatible with liquids, gases, and steam. View price range, drawing, dimension and weight online.
- Valve Type

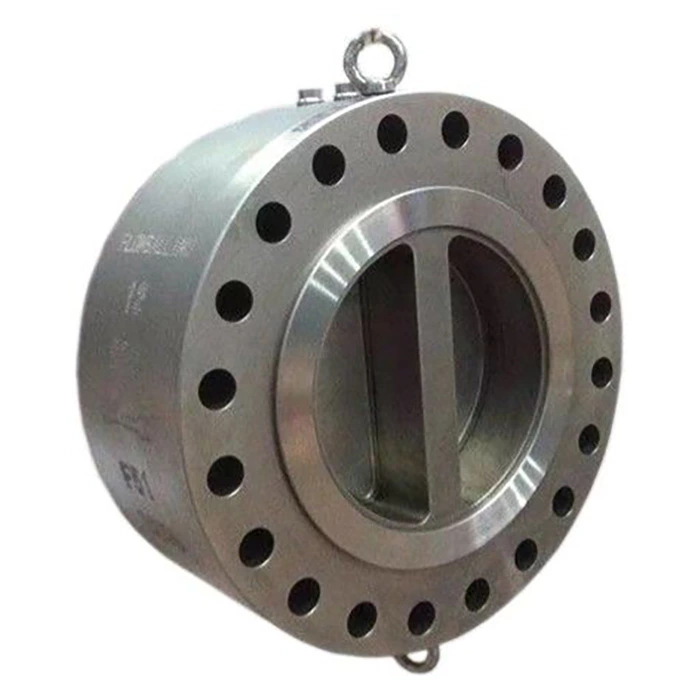

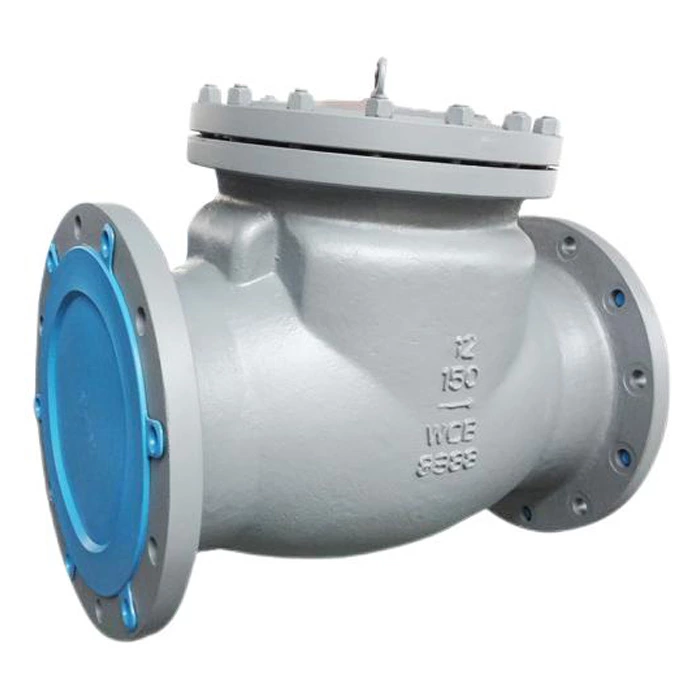

- Swing Check, Wafer Check
- Size
- 12" (DN300)
- End Connections
- Flanged Ends
- Unit Price
- $1100-11500
- Origin
- China
TAGS:

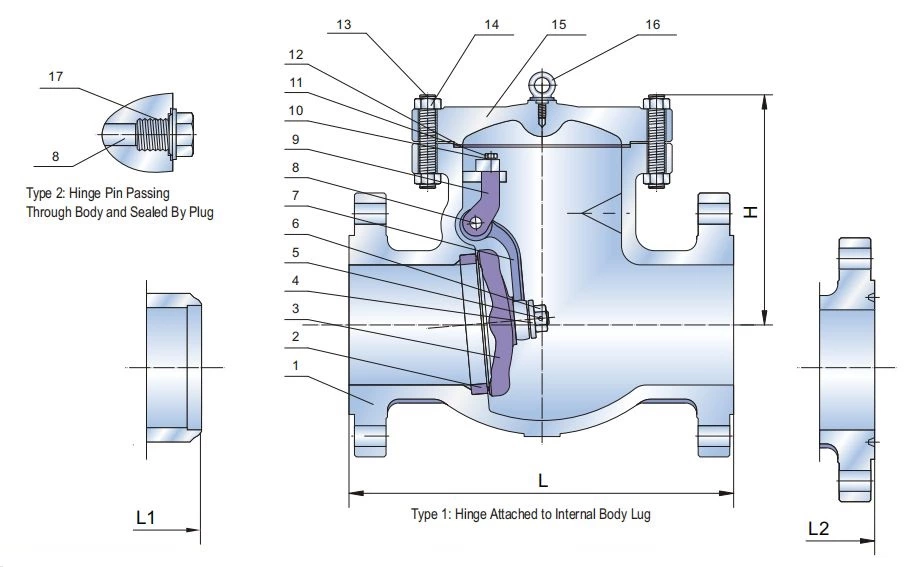

12 Inch Swing Check Valve Drawing
Dimension and Weight
| Size | inch | 12" | 12" | 12" | 12" | 12" | 12" |
| mm | DN300 | DN300 | DN300 | DN300 | DN300 | DN300 | |
| Pressure | ANSI | Class 150 | Class 300 | Class 600 | Class 900 | Class 1500 | Class 2500 |
| L/L1 | mm | 699 | 711 | 838 | 965 | 1130 | 1422 |
| L2 | mm | 711 | 727 | 841 | 968 | 1146 | 1445 |
| H | mm | 425 | 460 | 528 | 775 | 857 | 1000 |
| Weight RF | kg | 366 | 450 | 875 | 1120 | 2280 | 5500 |
