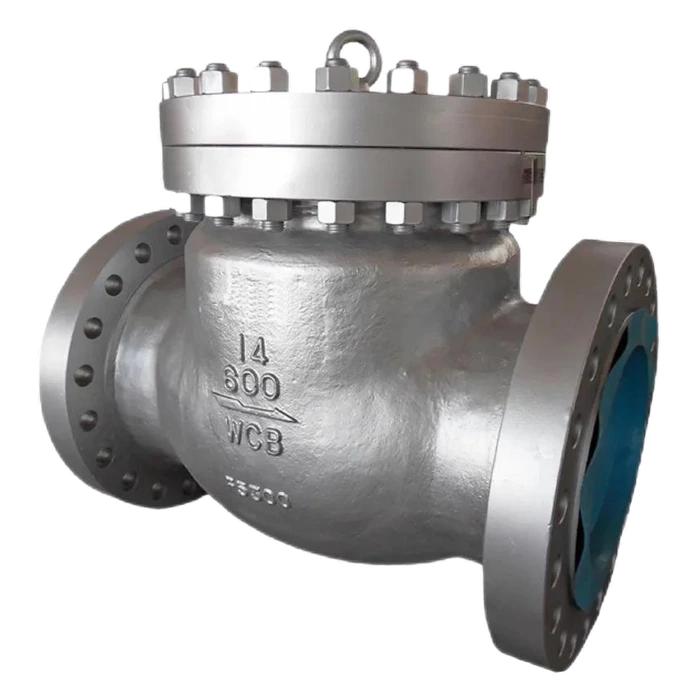

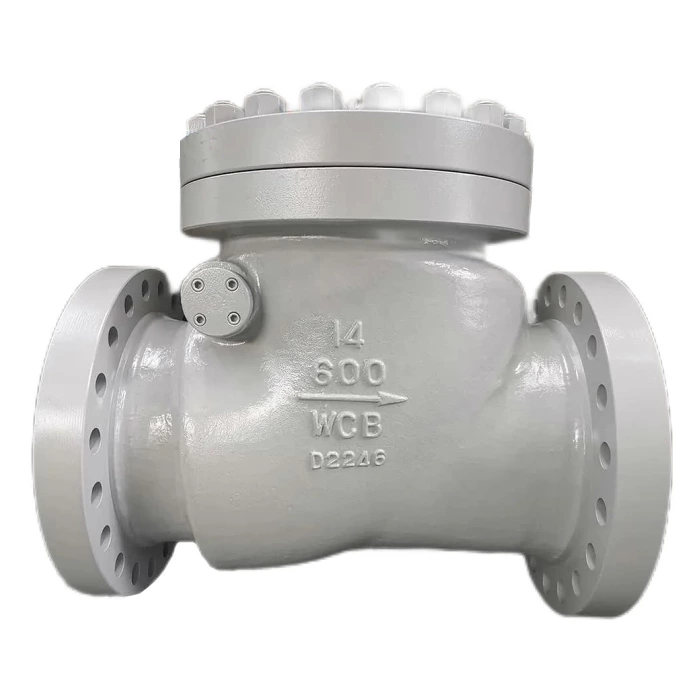

14 Inch Check Valve
14 inch check valve (DN350) features simple design which reduces wear and downtime. View price range, drawing, dimension and weight online.
- Valve Type
- Swing Check, Wafer Check
- Size
- 14" (DN350)
- Unit Price
- $1100-5000
- Delivery Time
- 30-50 Days
- Origin
- China
TAGS:

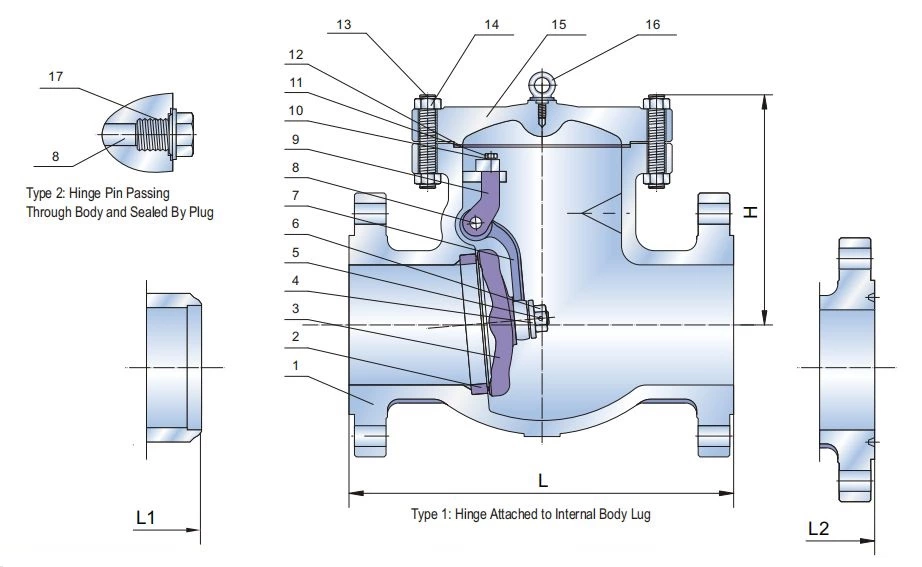

14 Inch Swing Check Valve Drawing
Dimension and Weight
| Size | inch | 14" | 14" | 14" | 14" | 14" |
| mm | DN350 | DN350 | DN350 | DN350 | DN350 | |
| Pressure | ANSI | Class 150 | Class 300 | Class 600 | Class 900 | Class 1500 |
| L/L1 | mm | 787 | 838 | 889 | 1029 | 1257 |
| L2 | mm | 800 | 854 | 892 | 1038 | 1276 |
| H | mm | 475 | 520 | 572 | 641 | 857 |
| Weight RF | kg | 428 | 680 | 944 | 1480 | 2358 |
