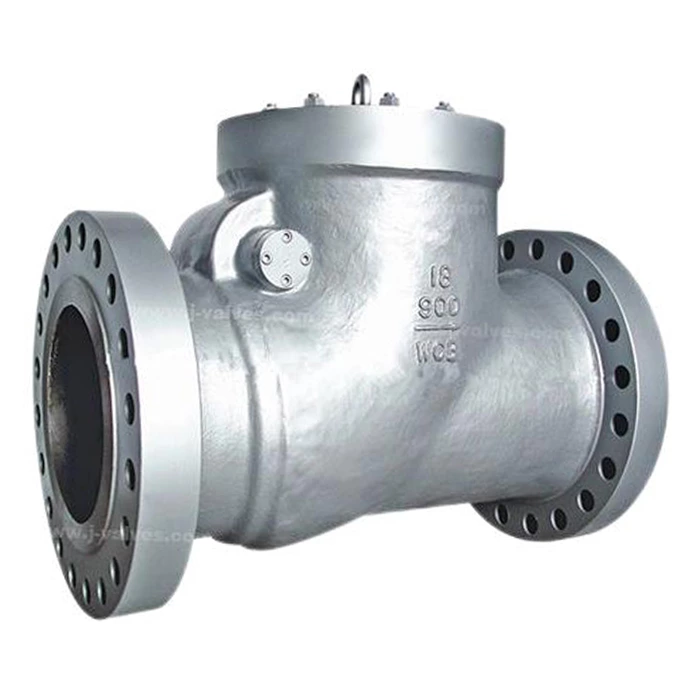

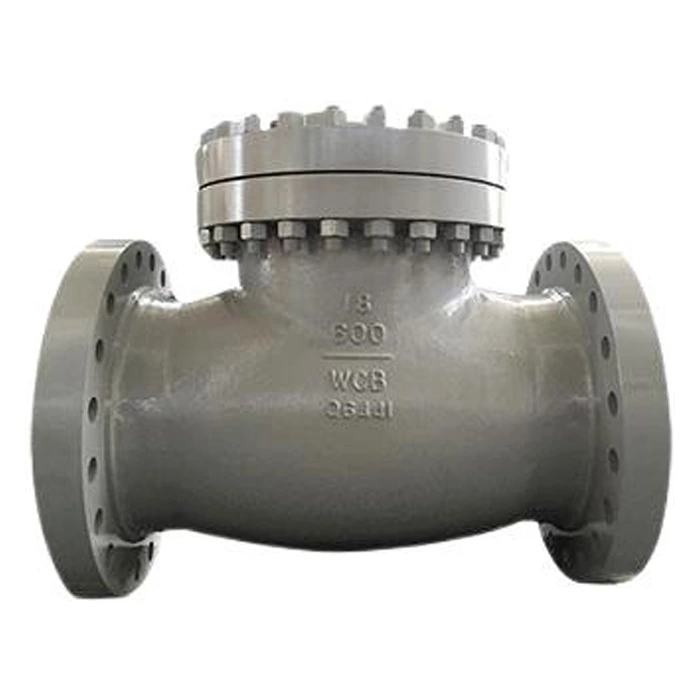

18 Inch Check Valve
18 inch check valve (DN450) uses a hinged disc (flapper) to allow flow in one direction and prevent backflow. View price range, drawing, dimension and weight online.
- Valve Type
- Swing Check Valve
- Size
- 18" (DN450)
- End Connections
- Flanged
- Unit Price
- $2000-22000
- Origin
- China
TAGS:

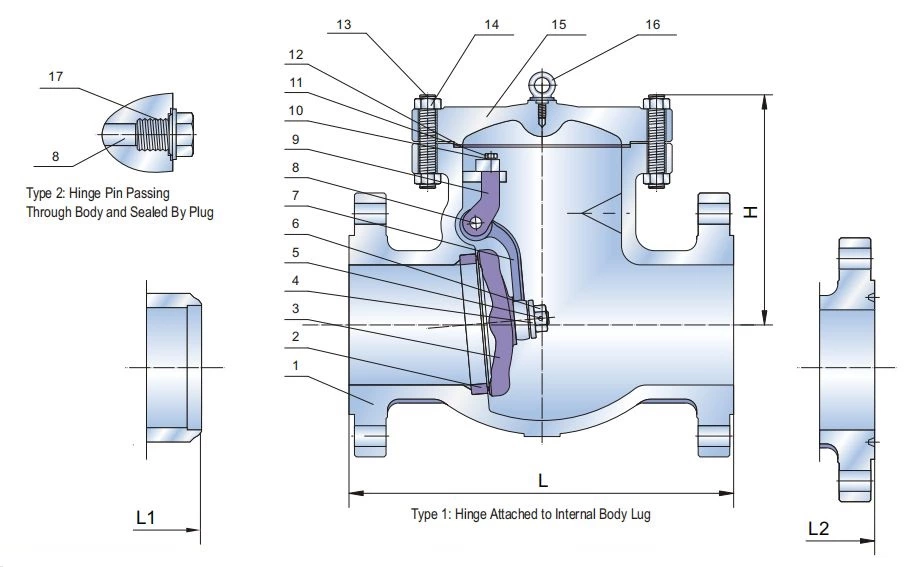

18 Inch Swing Check Valve Drawing
Dimension and Weight
| Size | inch | 18" | 18" | 18" | 18" | 18" |
| mm | DN450 | DN450 | DN450 | DN450 | DN450 | |
| Pressure | ANSI | Class 150 | Class 300 | Class 600 | Class 900 | Class 1500 |
| L/L1 | mm | 978 | 978 | 1092 | 1219 | 1537 |
| L2 | mm | 991 | 994 | 1095 | 1232 | 1559 |
| H | mm | 580 | 600 | 720 | 787 | 1022 |
| Weight RF | kg | 775 | 1025 | 1620 | 3698 |
