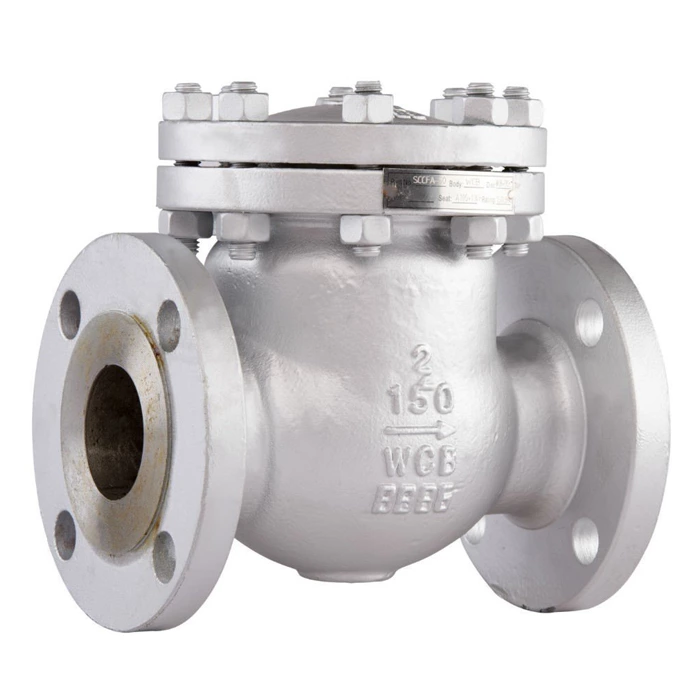

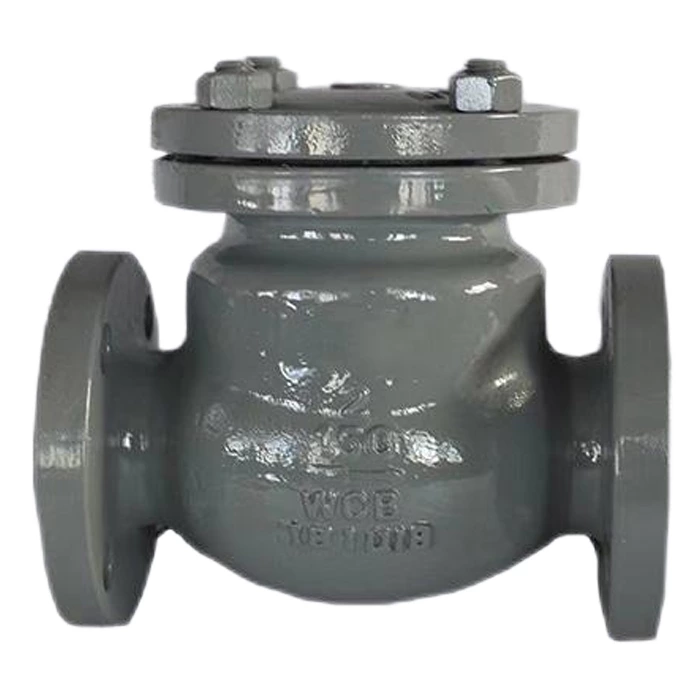

2 Inch Check Valve

Valve Type
Swing Check Valve
Size
2" (DN50)
Pressure Rating
Class 150-2500
Body Material
Carbon steel, stainless steel, duplex steel etc.
Unit Price
$50-1000
Origin
China
Enquiry
TAGS:
2 inch check valve price
2 Inch Check Valve
2 inch check valve price
2 Inch Check Valve

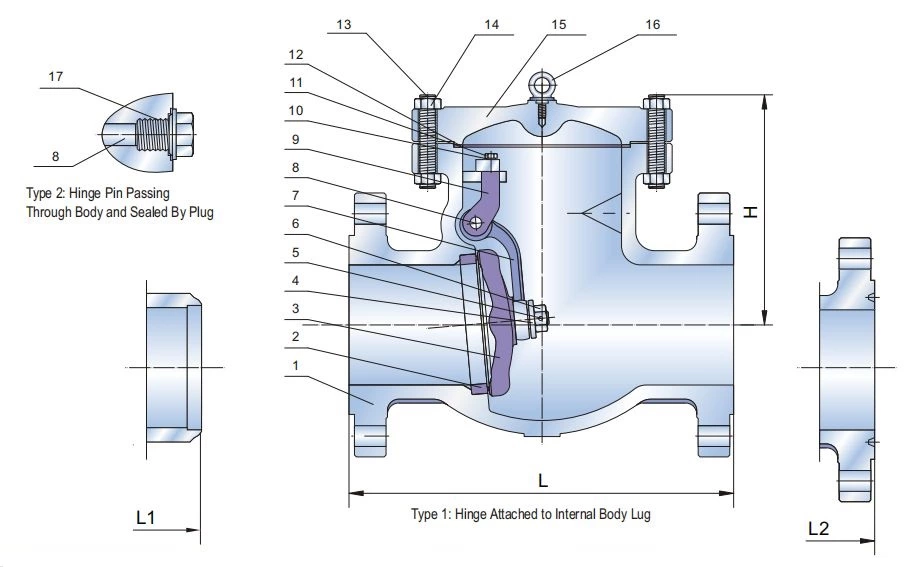

2 Inch Swing Check Valve Drawing

2 inch swing check valve drawing

Dimension and Weight

SIZE inch 2" 2" 2" 2" 2" 2"
mm DN50 DN50 DN50 DN50 DN50 DN50
Pressure ANSI Class 150 Class 300   Class 600 Class 900 Class 1500 Class 2500
L/L1 mm 203 267 292 368 368 451
L2 mm 216 283 295 371 371 454
H mm 155 175 182 296 296 416
Weight RF kg 19 21 36 70 70 145
