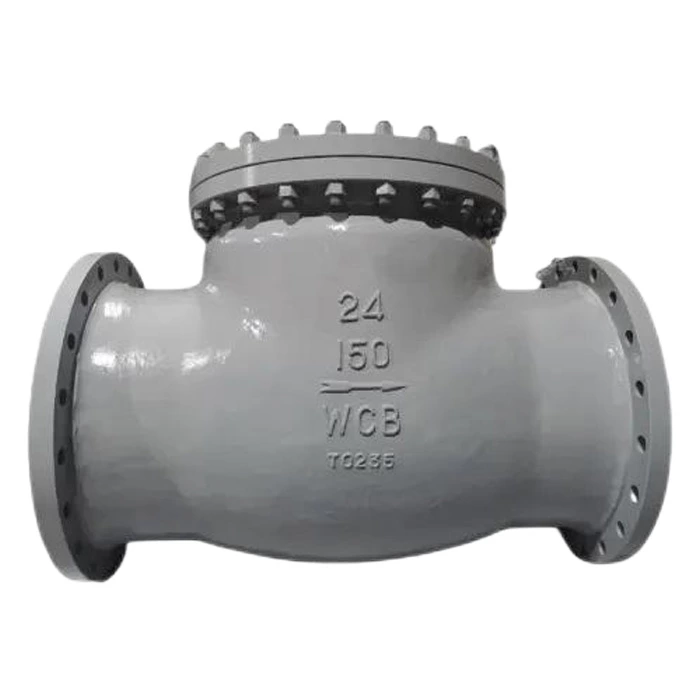

24 Inch Check Valve
24 inch check valve (DN600) is widely used in water systems, HVAC, and industrial applications. Get price, drawing, dimension and weight online.
- Valve Type
- Swing Check, Wafer Check
- Size
- 24" (DN600)
- Pressure Rating
- Class 150-1500
- Unit Price
- $3500-36000
- Origin
- China
TAGS:

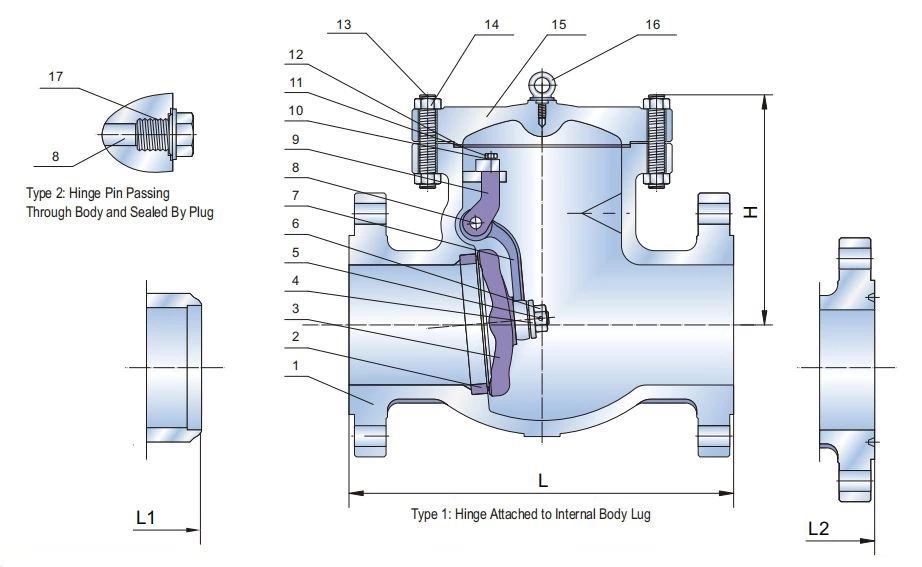

24 Inch Swing Check Valve Drawing
Dimension and Weight
| Size | inch | 24" | 24" | 24" | 24" | 24" |
| mm | DN600 | DN600 | DN600 | DN600 | DN600 | |
| Pressure | ANSI | Class 150 | Class 300 | Class 600 | Class 900 | Class 1500 |
| L/L1 | mm | 1295 | 1346 | 1397 | 1549 | 1943 |
| L2 | mm | 1308 | 1368 | 1407 | 1568 | 1972 |
| H | mm | 882 | 750 | 960 | ||
| Weight RF | kg | 1180 | 1960 | 3100 |
