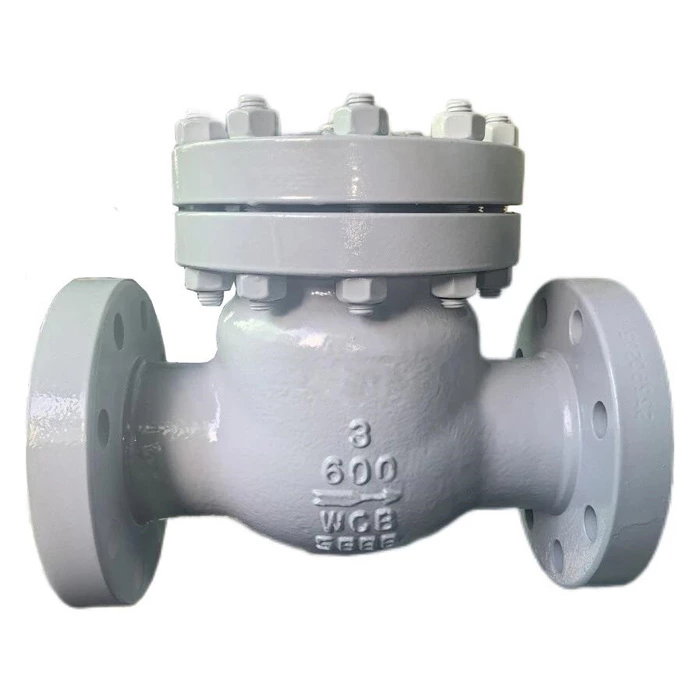

3 Inch Check Valve
- Valve Type
- Swing Check Valve
- Size
- 3" (DN80)
- End Connections
- Flanged End
- Unit Price
- $85-1000
- Origin
- China
TAGS:

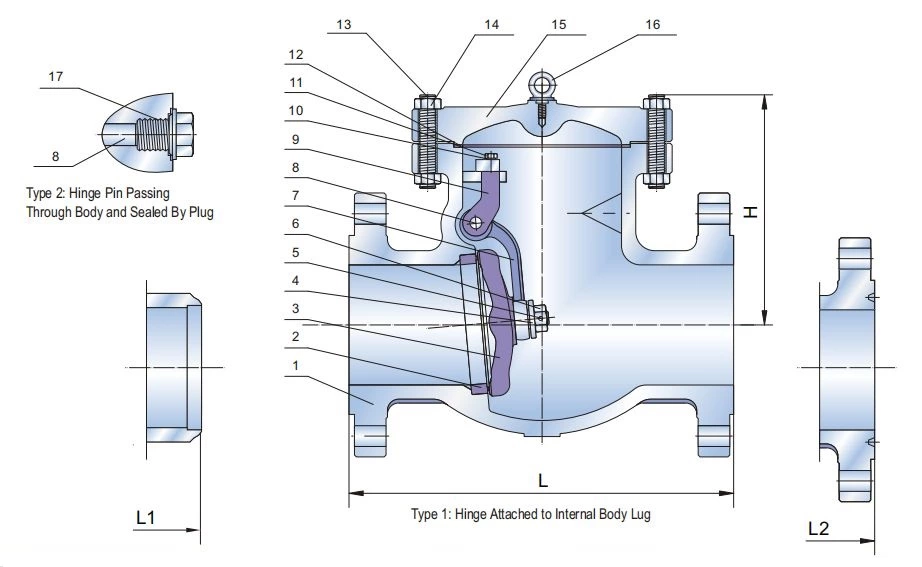

3 Inch Swing Check Valve Drawing
Dimension and Weight
| Size | inch | 3" | 3" | 3" | 3" | 3" | 3" |
| mm | DN80 | DN80 | DN80 | DN80 | DN80 | DN80 | |
| Pressure | ANSI | Class 150 | Class 300 | Class 600 | Class 900 | Class 1500 | Class 2500 |
| L/L1 | mm | 241 | 318 | 356 | 381 | 470 | 578 |
| L2 | mm | 254 | 333 | 359 | 384 | 473 | 584 |
| H | mm | 180 | 198 | 227 | 300 | 341 | 441 |
| Weight RF | kg | 29 | 39 | 70 | 91 | 150 | 330 |
