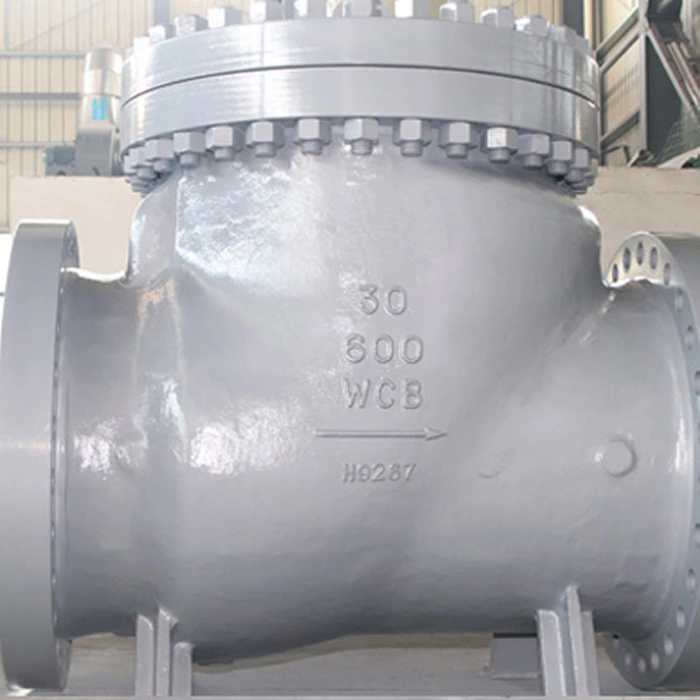

30 Inch Check Valve
30 inch check valve (DN750) is suitable for low-velocity flows: Works well in gravity-fed or low-pressure systems.
- Valve Type

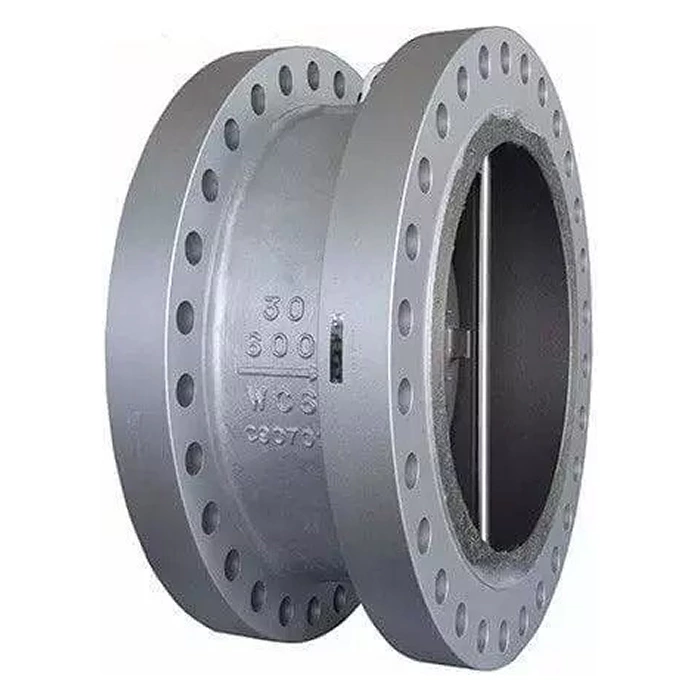

- Swing Check, Wafer check
- Size
- 30" (DN750)
- End Connections
- Flanged, Welded, Wafer
- Unit Price
- $6000-72000
- Origin
- China
TAGS:

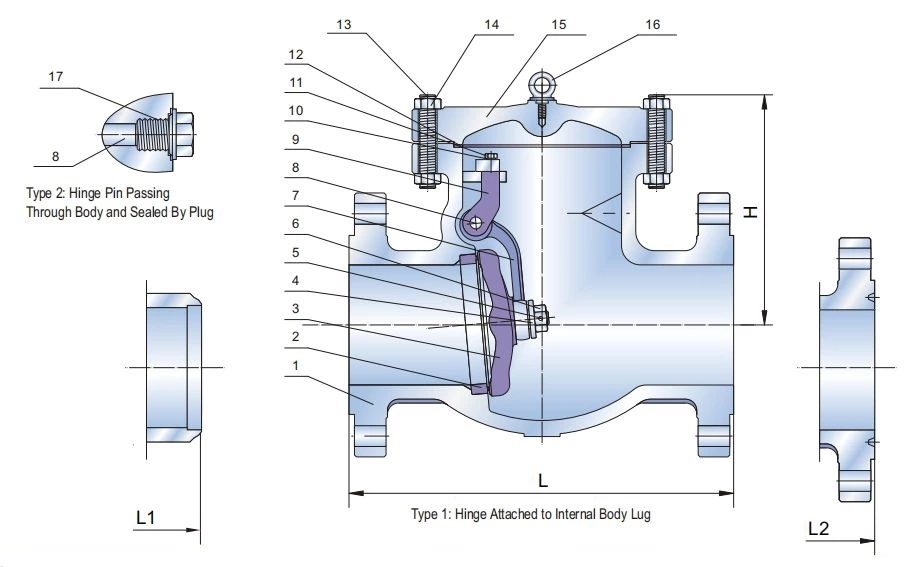

30 Inch Swing Check Valve Drawing
Dimensions and Weight
| Size | inch | 30" | 30" | 30" |
| mm | DN750 | DN750 | DN750 | |
| Pressure | ANSI | Class 150 | Class 300 | Class 600 |
| L/L1 | mm | 1524 | 1594 | 1651 |
| L2 | mm | - | 1619 | 1664 |
| H | mm | 1003 | 1029 | 1142 |
| Weight RF | kg | 1816 | 3000 | 5800 |
