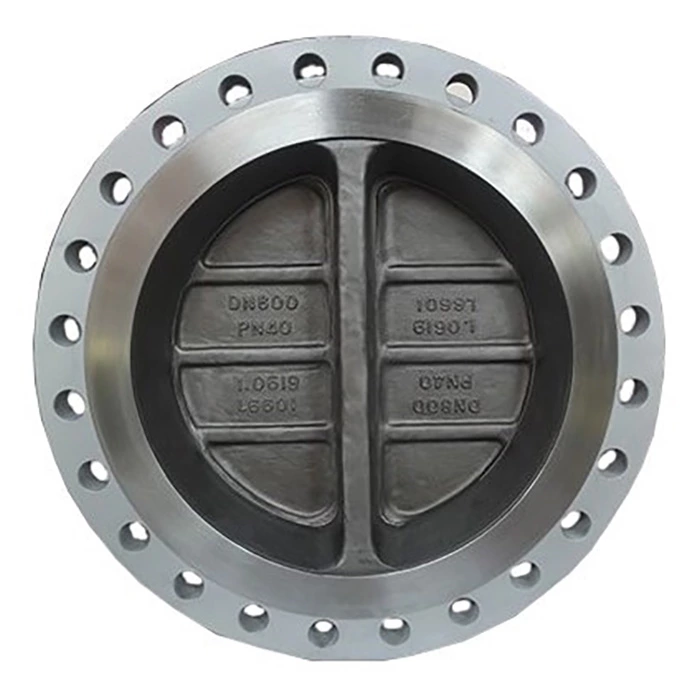

36 Inch Check Valve
36 inch check valve (DN900) automatically closes to stop reverse flow, protecting pumps and pipelines, availability of price and drawing online.
- Valve Type
- Swing Check, Wafer Check
- Size
- 36" (DN900)
- End Connections
- Flanged, Welded, Wafer
- Unit Price
- $8000-92000
- Origin
- China
TAGS:

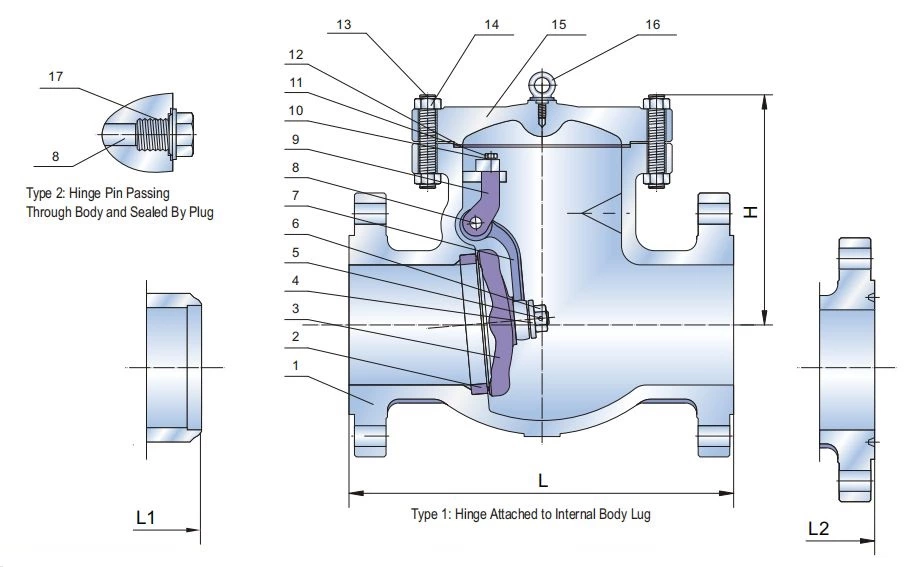

36 Inch Swing Check Valve Drawing
Dimensions and Weight
| Size | inch | 36" | 36" | 36" |
| mm | DN900 | DN900 | DN900 | |
| Pressure | ANSI | Class 150 | Class 300 | Class 600 |
| L/L1 | mm | 1956 | 2083 | 2083 |
| L2 | mm | - | 2111 | 2099 |
| H | mm | 1118 | 1270 | 1422 |
| Weight RF | kg | 3632 | 5400 | 10500 |
Leave Us Your Info
Could you please kindly fulfill the following information when enquiring:
Valve type (ball, gate, globe, check etc.), valve size, pressure class, valve material, and end connection (flanged, butt welding etc.)
