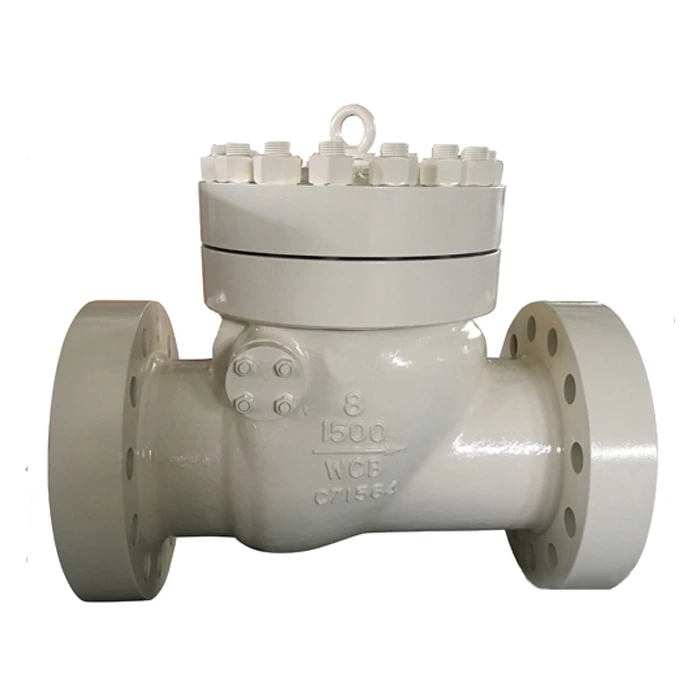

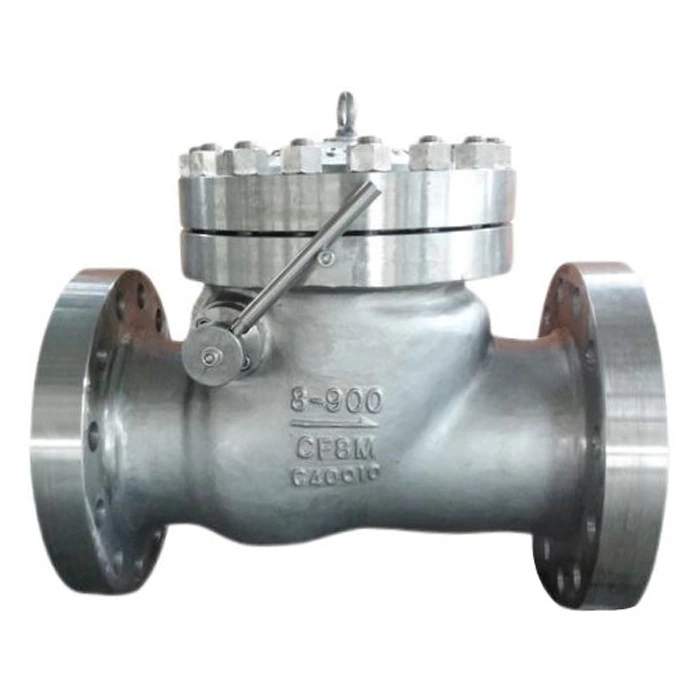

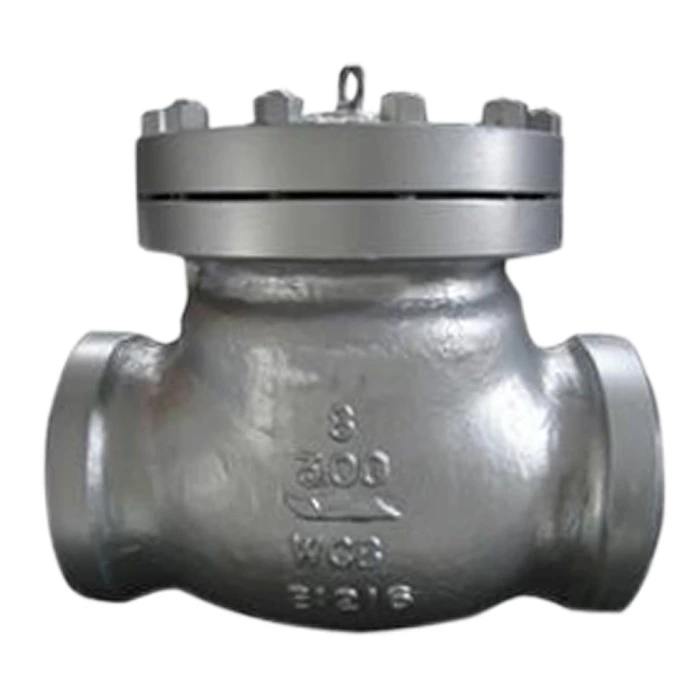

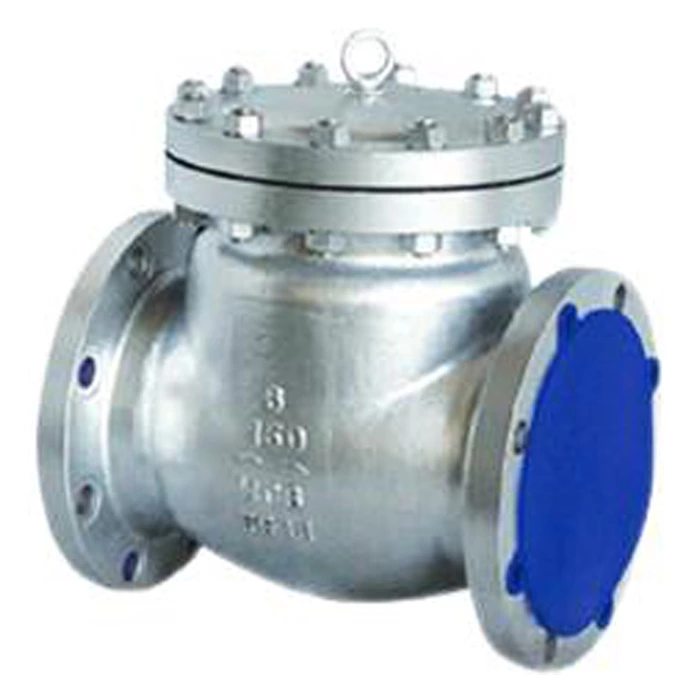

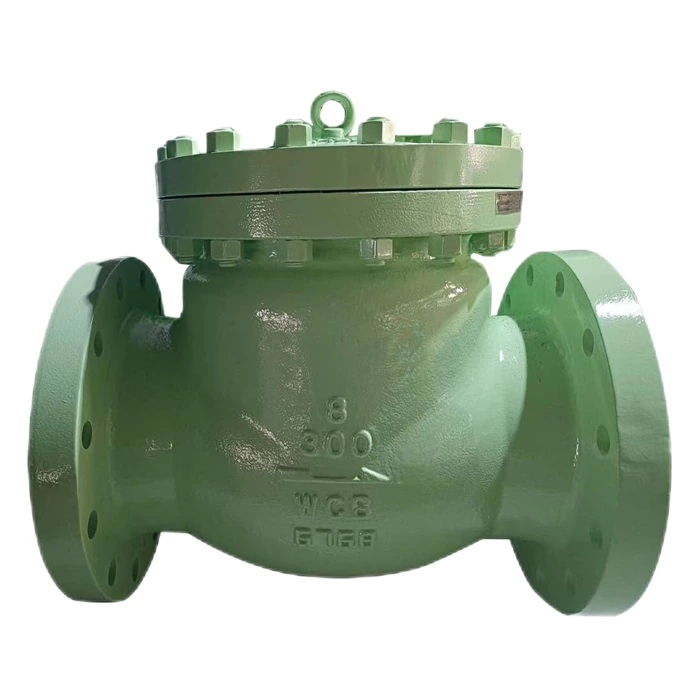

8 Inch Check Valve
8 inch check valve (DN200) is flanged, wafer, or butt-weld ends to suit piping configurations. Contact us for affordable price, view drawing, dimension and weight online.
- Valve Type
- Swing Check, Wafer Check
- Size
- 8" (DN200)
- End Connections
- Flanged, Wafer
- Unit Price
- $330-3400
- Origin
- China
TAGS:

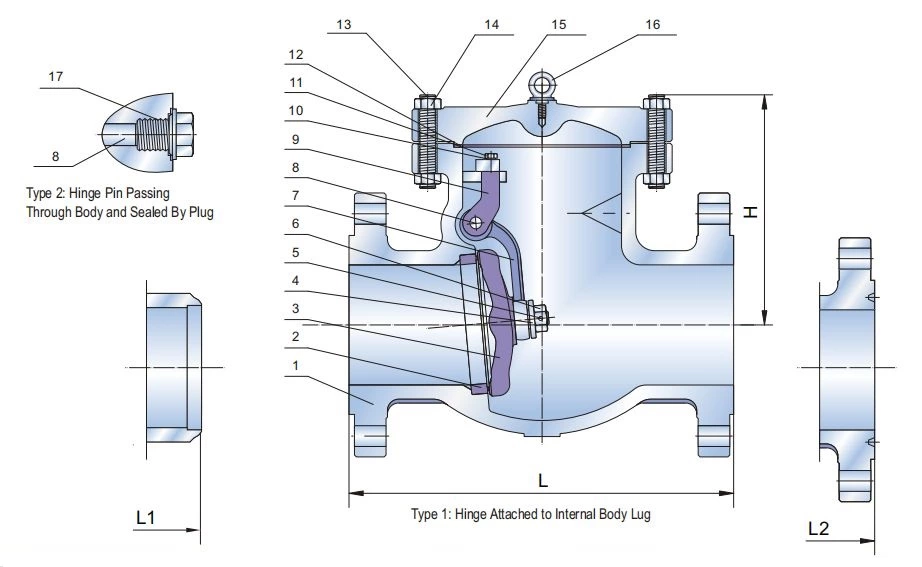

8 Inch Swing Check Valve Drawing
Dimension and Weight
| Size | inch | 8" | 8" | 8" | 8" | 8" | 8" |
| mm | DN200 | DN200 | DN200 | DN200 | DN200 | DN200 | |
| Pressure | ANSI | Class 150 | Class 300 | Class 600 | Class 900 | Class 1500 | Class 2500 |
| L/L1 | mm | 495 | 533 | 660 | 737 | 832 | 1022 |
| L2 | mm | 508 | 549 | 663 | 740 | 841 | 1038 |
| H | mm | 310 | 335 | 390 | 502 | 680 | 711 |
| Weight RF | kg | 163 | 210 | 465 | 510 | 1010 | 2420 |
Leave Us Your Info
Could you please kindly fulfill the following information when enquiring:
Valve type (ball, gate, globe, check etc.), valve size, pressure class, valve material, and end connection (flanged, butt welding etc.)
