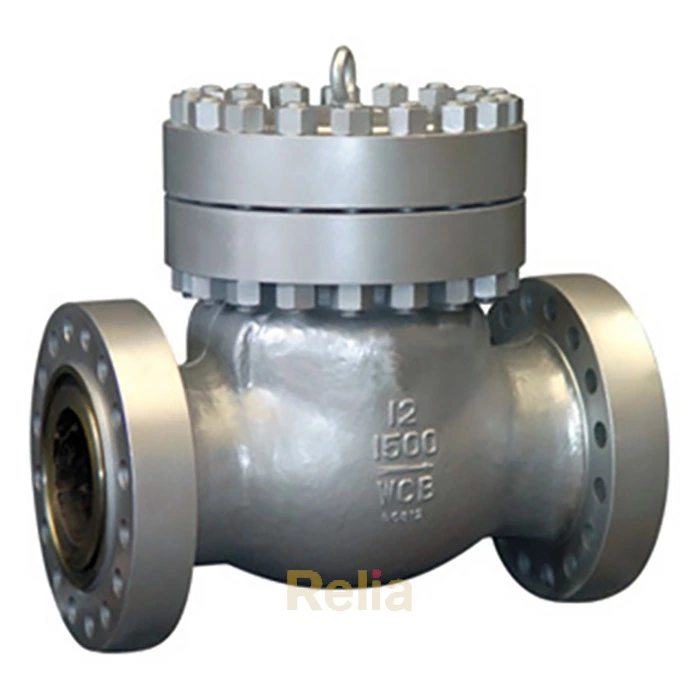

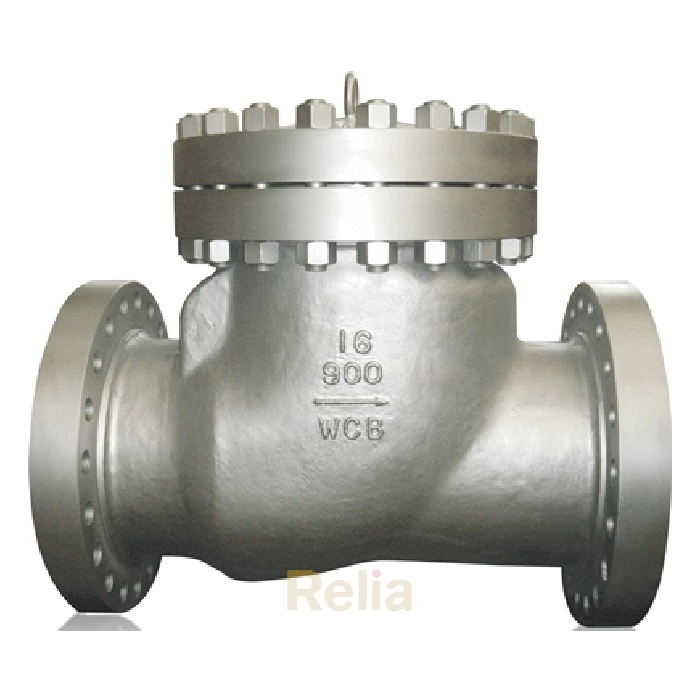

Cast Steel Swing Check Valve (Bolted Bonnet Type)

Cast steel swing check valves are full port to API 6D or conventional port to BS 1868 or API 594 Type B, with a standard bolted bonnet or pressure seal for high pressure and large sizes, flanged ends or welded ends.

Design Features:

  • Bolted bonnet (cover)
  • Swing check disc

Options:

  • Piston check disc
  • Pressure seal cover

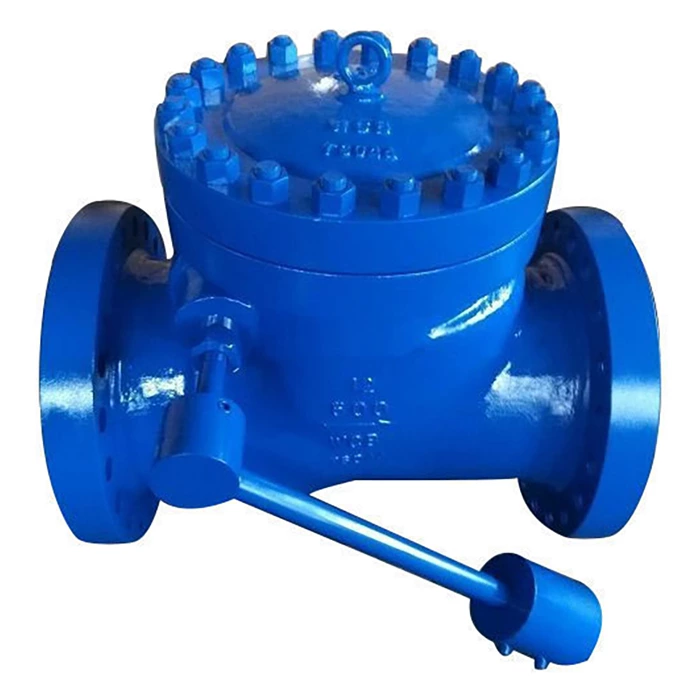

  • With counterweight or damper/Lever & Weight
  • Bypass

Size & Pressure Rating

  • 2" - 48"
  • Class 150 - Class 2500

Material

  • Body: Carbon steel, low temperature carbon steel, alloy steel, stainless steel, Al bronze
  • Trim: All in API 600 trim chart, such as no. 1, 10, 5, 8, 12, etc.

Standards

Design:

  • BS 1868/API 6D/API 594 Type B

Dimensions:

  • Face to face/end to end: API 6D
  • End flange: ASME B16.5/16.47
  • BW Ends: ASME B16.25

Test:

  • API 598

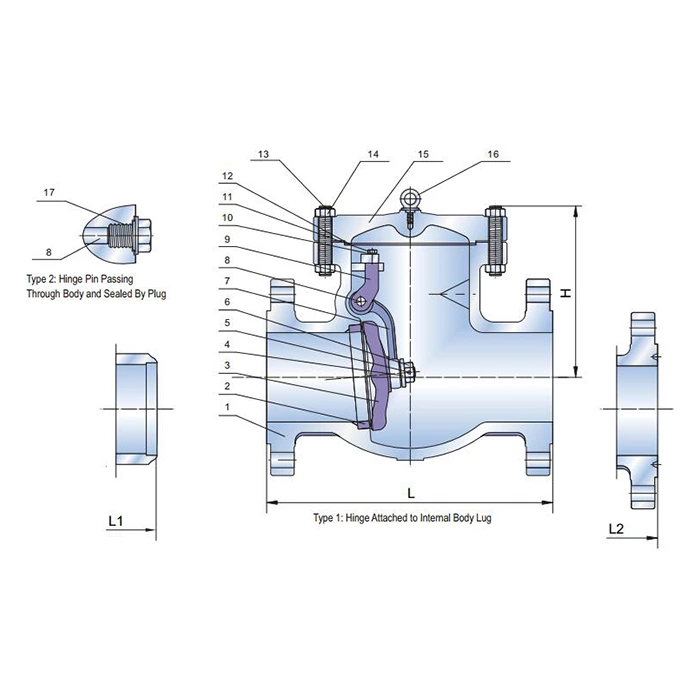

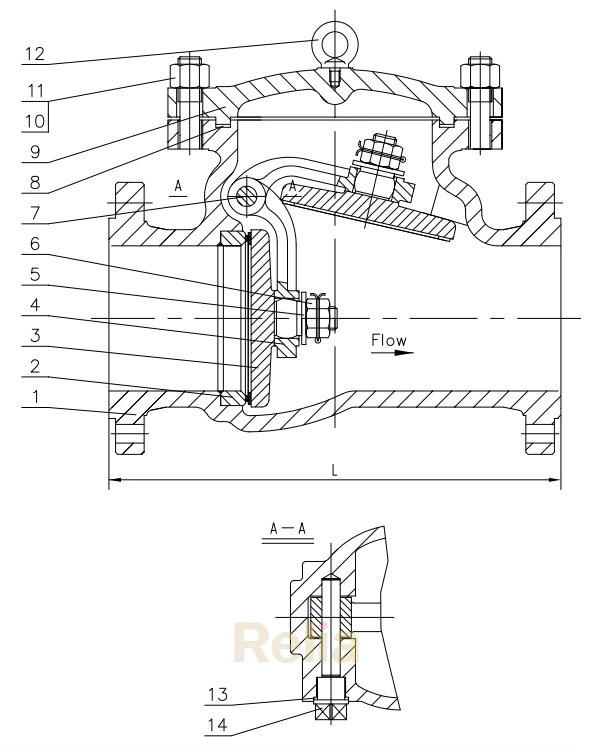

Cast Steel Swing Check Valve Drawing



Cast Steel Swing Check Valve Drawing
(Full Port, Bolted Cover)

cast steel swing check valve drawings, full port, bolted cover

Typical Material
(A216 WCB Body, 13Cr Trim)

1 Body A216 WCB
2 Seat Ring A105+STL
3 Disc A216 WCB+13Cr
4 Hinge A216 WCB
5 Disc Washer Stainless Steel
6 Disc Nut A194 B8M
7 Hinge Pin A276 316
8 Gasket SS304+Graphite
9 Cover A216 WCB
10 Nut A194 2HM
11 Bolt A193 B7M
12 Hook Screw Carbon Steel
13 Gasket Copper Alloy
14 Drain Plug Carbon Steel

Hot Sales

high pressure swing check valve

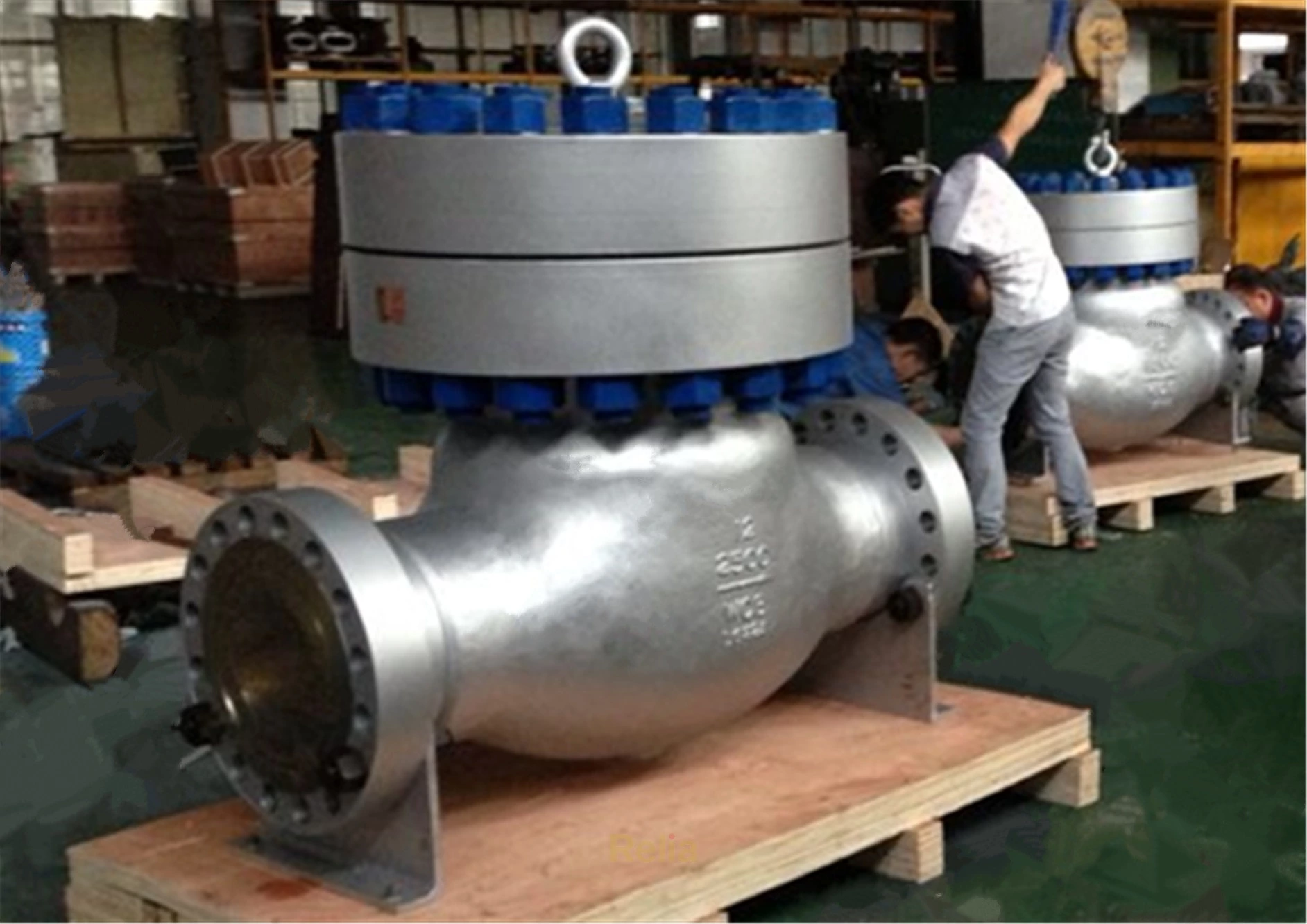

High pressure swing check valve
(Carbon steel, A216 WCB, Class 2500, BS 1868)

full flow swing check valve

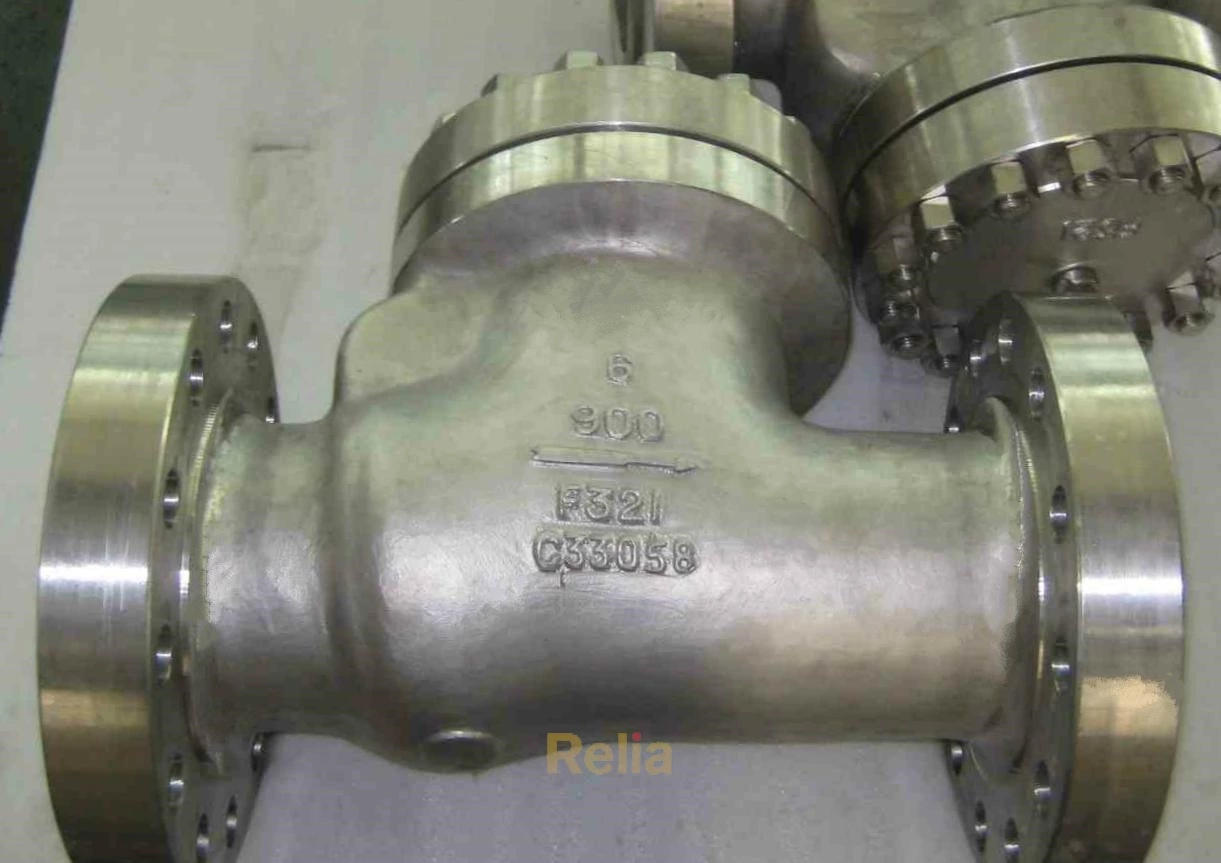

Full flow swing check valve
(6 inch, Class 900, Stainless steel, API 6D)
