Cast Steel Gate Valve

API 600 Cast steel gate valves are flexible wedge gate valves feature flexible wedge disc, as well as a rising stem. Cast steel gate valves are typically made of carbon steel (A216 WCB). Relia is a cast steel gate valve manufacturer with CE Certification.

Design Features:

  • Flexible wedge gate
  • Stem with outside screw and yoke (OS&Y)
  • Rising stem
  • Non-rising handwheel
  • Bolted bonnet
  • All seat rings are seal welded as standard.

Options:

  • Pressure seal bonnet
  • Non-rising stem gate valve
  • By-pass
  • Locking device
Enquiry
cast steel gate valve gear operated

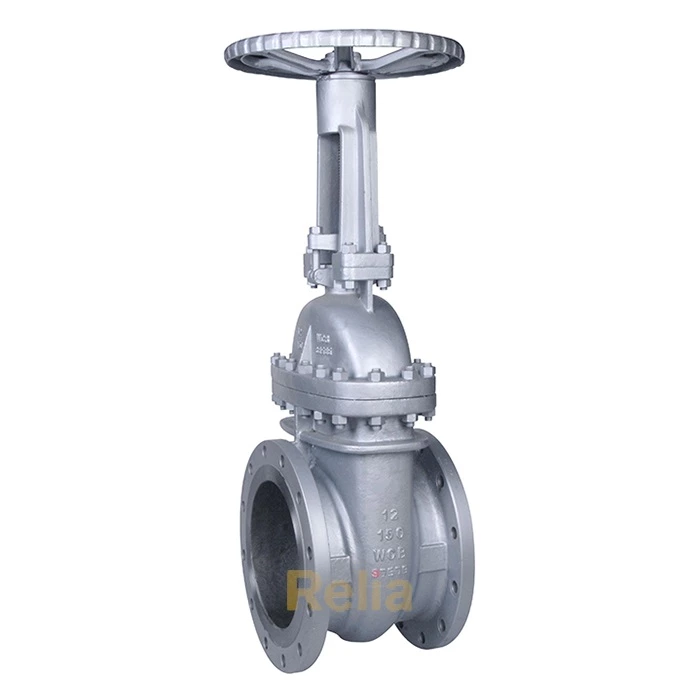

API 600 gate valve A216 WCB

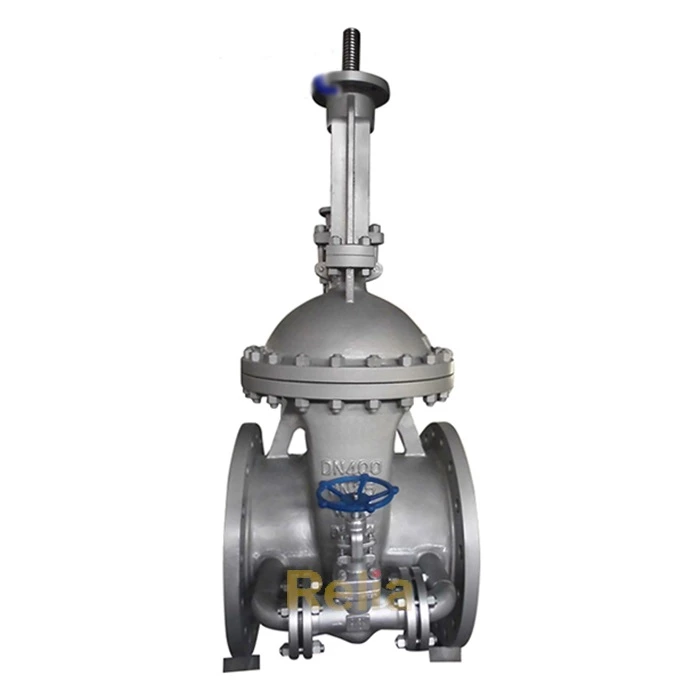

cast carbon steel gate valve with bypass

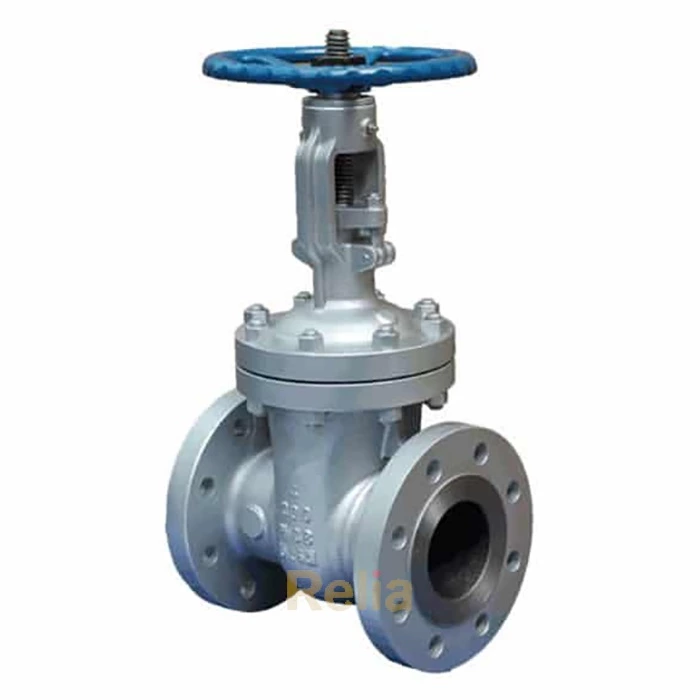

ANSI flexible wedge gate valve flanged
cast steel flexible wedge gate valve
cast steel gate valve gear operated
API 600 gate valve A216 WCB
cast carbon steel gate valve with bypass
ANSI flexible wedge gate valve flanged
cast steel flexible wedge gate valve

Cast steel gate valves offer dependable service for refineries, chemical plants, petrochemical plants, and oil industry processes. They are available in a wide variety of body and trim materials.

Cast steel gate valves are designed to API 600 or DIN standards, with flexible disc or solid disc upon request.

The flexible wedge disc is ground and lapped to a mirror finish and tightly guided to prevent dragging and seat damage.

Hardfaced 13Cr, Stellite, SS 316, Monel, or CoCr alloy flexible wedge disc with low center stem-wedge contact. The wedge is smoothed and polished until it looks like a mirror, and it is tightly guided so it doesn't drag and damage the seat.



Main Material:

Body:

  • Carbon steel (A216 WCB, WCC)
  • Low temperature carbon steel (A352 LCB, LCC)
  • Alloy steel (A217 WC5, WC6, WC9, C5, C6, C12A)
  • Stainless steel (A351 CF8, CF3, CF8M, CF3M etc)
  • Al bronze (C95800 etc.),

Trim: All inAPI 600 trim chart, such as trim no. 1, 10, 5, 8, 12, etc.



Operation:

Handwheel, bevel gear or motor gate valves

Standard Specifications

Design API 600/ASME B16.34 Face to face ANSI B16.10
End flange ASME B16.5/16.47 BW Ends ASME B16.25
Test API 598 Material Nace Mr-0175



Cast Steel Gate Valve Class 150

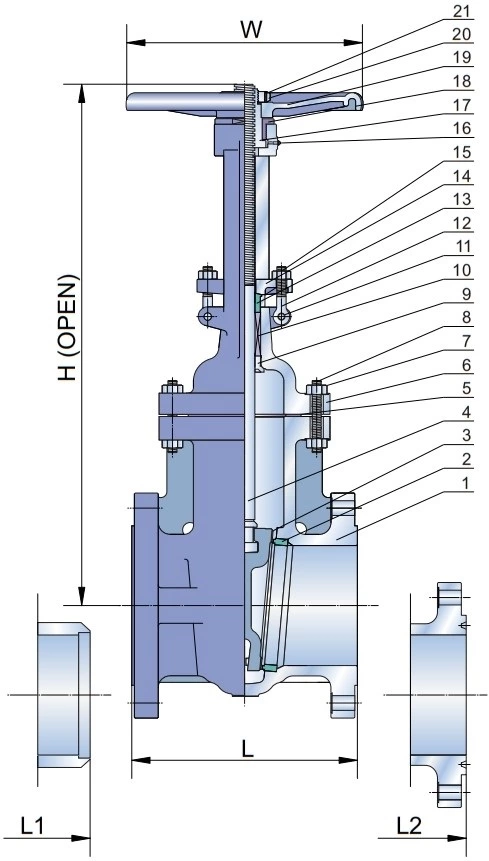

Class 150 Cast Steel Gate Valve Drawing



class 150 cast steel gate valve drawing.jpg



Typical Material

Item Part Name Material
1 Body A216 WCB
2 Seat Ring A105+STL
3 Disc A216 WCB+13Cr
4 Stem A182 F6a
5 Gasket SS 304+Graphite
6 Bonnet A216 WCB
7 Nut A194 2H
8 Bolt A193 B7
9 Bushing A276 410
10 Packing SS304+Graphite
11 Pin Carbon Steel
12 Bolt A307 GR.B
13 Gland A276 410
14 Gland Flange A216 WCB
15 Nut A194 2H
16 Grease Nipple Carbon Steel
17 Stem Nut A439 GR. D-2
18 Retaining Nut Carbon Steel
19 Handwheel Ductile Iron
20 Nut Carbon Steel
21 Screw Carbon Steel
22 Yoke A216 WCB
23 Nut A194 2H
24 Bolt A193 B7
25 Bearing Steel

outside screw & yoke for class 150 gate valve 14 inch and bigger

Yoke for 14 inch and above

Class 150 cast steel gate valve 16 inch and above have thrust bearing

Thrust bearing for 16 inch and above



Class 150 Cast Steel Gate Valve Dimensions & Weight

Size Inch 2" 2.5" 3" 4" 6" 8" 10" 12" 14" 16" 18" 20" 24" 26" 28" 30" 32" 36" 40"
DN 50 65 80 100 150 200 250 300 350 400 450 500 600 650 700 750 800 900 1000
End to End Dimensions
(mm)		 L 178 191 203 229 267 292 330 356 381 406 432 457 508 559 610 610 660 711 762
L1 216 241 283 305 403 419 457 502 572 610 660 711 813 864 914 914 965 1016 1067
L2 191 203 216 241 279 305 343 368 394 419 445 470 521 / / / / / /
Height(mm) H 389 439 500 595 777 975 1160 1390 1555 1811 2103 2300 2609 2780 3327 3606 3708 3924 4280
Handwheel (mm) W 200 200 250 250 350 400 450 560 600 640 680 760 610 610 610 610 610 610 610
Weight, Kg RF 17 23 29 47 80 129 192 287 410 571 720 1170 1466 1699 1931 2380 2490 3600 458



Class 300 Cast Steel Gate Valve

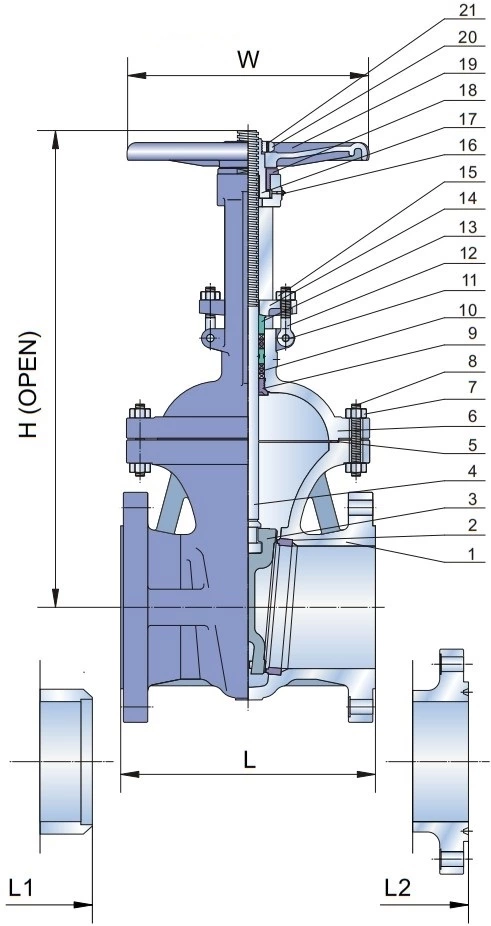

Class 300 Cast Steel Gate Valve Drawing



class 300 cast steel gate valve drawing

Typical Material

Item Part Name Material
1 Body A216 WCB
2 Seat Ring A105+STL
3 Disc A216 WCB+13Cr
4 Stem A182 F6a
5 Gasket SS 304+Graphite
6 Bonnet A216 WCB
7 Nut A194 2H
8 Bolt A193 B7
9 Bushing A276 410
10 Packing SS304+Graphite
11 Pin Carbon Steel
12 Bolt A307 GR.B
13 Gland A276 410
14 Gland Flange A216 WCB
15 Nut A194 2H
16 Grease Nipple Carbon Steel
17 Stem Nut A439 GR. D-2
18 Retaining Nut Carbon Steel
19 Handwheel Ductile Iron
20 Nut Carbon Steel
21 Screw Carbon Steel
22 Yoke A216 WCB
23 Nut A194 2H
24 Bolt A193 B7
25 Bearing Steel
26 Lantern Ring A276 410

class 300 cast steel gate valves 12 inch have outside screw & yoke

Yoke for 12 inch and above

class 300 gate valves 10 inch and above have thrust bearing

Thrust bearing for 10 inch and above

Class 300 cast steel gate valve lantern ring on request

Lantern ring on request



Class 300 Gate Valve Dimensions & Weight

Size Inch 2" 2.5" 3" 4" 6" 8" 10" 12" 14" 16" 18" 20" 24" 26" 28" 30" 32" 36"
DN 50 65 80 100 150 200 250 300 350 400 450 500 600 650 700 750 800 900
End to End Dimensions
(mm)		 L 216 241 283 305 403 419 457 502 762 838 914 991 1143 1245 1346 1397 1524 1727
L1 216 241 283 305 403 419 457 502 762 838 914 991 1143 1245 1346 1397 1524 1727
L2 232 257 298 321 419 435 473 517 778 854 930 1010 1165 1270 1372 1422 1552 1756
Height(mm) H 430 505 530 630 800 1008 1240 1470 1645 1841 1959 2194 2598 2800 3100 3320 3560 3910
Handwheel (mm) W 200 250 250 250 350 400 450 500 600 600 610 610 610 610 610 810 810 810
Weight, Kg RF 30 45 57 88 147 219 368 522 694 1080 1235 1655 2320 3100 3893 4930 5230 6885



Cast Steel Gate Valve Class 600

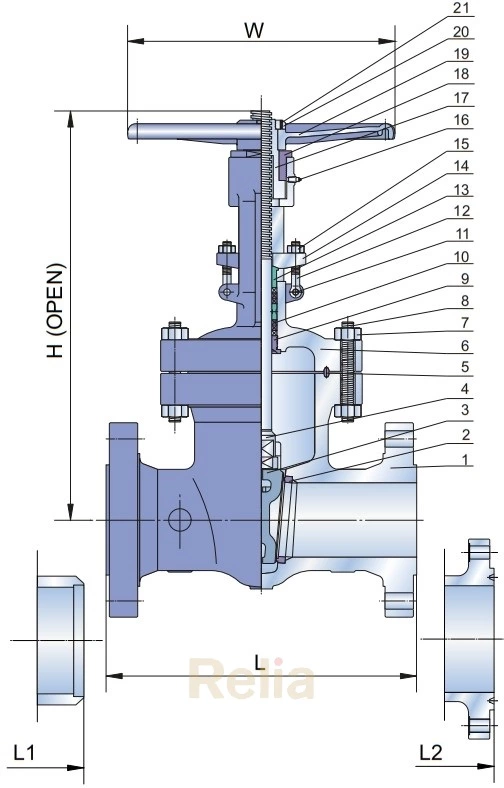

Class 600 Cast Steel Gate Valve Drawing



class 600 cast steel gate valve

Class 600 cast steel gate valves 6 inch and above have outside screw and yoke (OS & Y)

Yoke for 6 inch and above

Typical Material

Item Part Name Material
1 Body A216 WCB
2 Seat Ring A105+STL
3 Disc A216 WCB+13Cr
4 Stem A182 F6a
5 Gasket SS 304+Graphite
6 Bonnet A216 WCB
7 Nut A194 2H
8 Bolt A193 B7
9 Bushing A276 410
10 Packing SS304+Graphite
11 Pin Carbon Steel
12 Bolt A307 GR.B
13 Gland A276 410
14 Gland Flange A216 WCB
15 Nut A194 2H
16 Grease Nipple Carbon Steel
17 Stem Nut A439 GR. D-2
18 Retaining Nut Carbon Steel
19 Handwheel Ductile Iron
20 Nut Carbon Steel
21 Screw Carbon Steel
22 Yoke A216 WCB
23 Nut A194 2H
24 Bolt A193 B7
25 Bearing Steel
26 Lantern Ring A276 410



class 600 gate valves 6 inch and above have thrust bearing

Thrust bearing for 6 inch and above

Class 600 gate valve lantern ring on request

Lantern ring on request

class 600 cast steel gate valves 14 inch and above are gear operated.jpg

gear operated for 14 inch and above



Class 600 Cast Steel Gate Valve Dimensions & Weight

Size Inch 2" 2.5" 3" 4" 6" 8" 10" 12" 14" 16" 18" 20" 24"
DN 50 65 80 100 150 200 250 300 350 400 450 500 600
End to End Dimensions
(mm)		 L 292 330 356 432 559 660 787 838 889 991 1092 1194 1397
L1 292 330 356 432 559 660 787 838 889 991 1092 1194 1397
L2 295 333 359 435 562 663 790 841 892 994 1095 1200 1407
Height(mm) H 455 588 550 690 910 1065 1257 1468 1623 1816 2260 2705 2810
Handwheel(mm) W 250 250 250 350 450 500 640 680 610 610 610 610 610
Weight, Kg RF 45 55 76 127 277 485 754 936 1316 1672 2070 2405 4550



Cast Steel Gate Valve Class 900

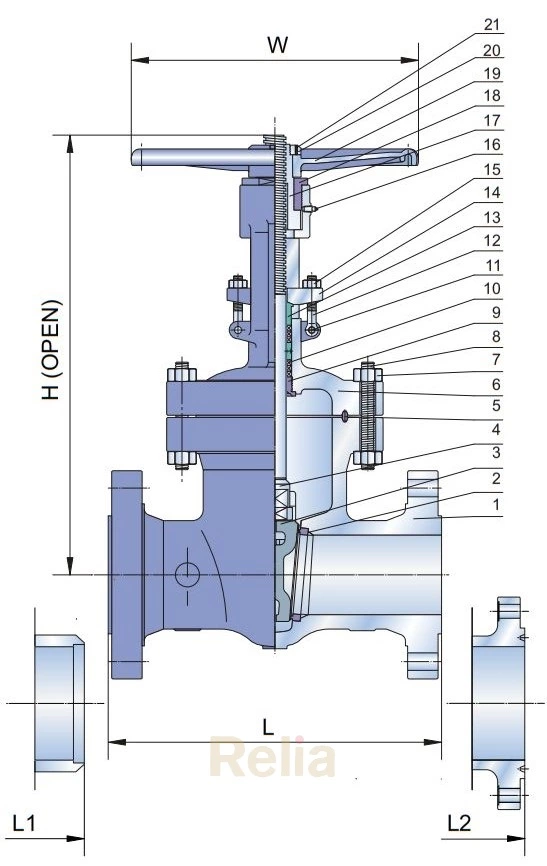

Class 900 Cast Steel Gate Valve Drawing

class 900 cast steel gate valve drawingClass 900 cast steel gate valves 6 inch and above have outside screw and yoke (OS & Y)

Yoke for 6 inch and above

Typical Material

Item Part Name Material
1 Body A216 WCB
2 Seat Ring A105+STL
3 Disc A216 WCB+13Cr
4 Stem A182 F6a
5 Gasket SS 304+Graphite
6 Bonnet A216 WCB
7 Nut A194 2H
8 Bolt A193 B7
9 Bushing A276 410
10 Packing SS304+Graphite
11 Pin Carbon Steel
12 Bolt A307 GR.B
13 Gland A276 410
14 Gland Flange A216 WCB
15 Nut A194 2H
16 Grease Nipple Carbon Steel
17 Stem Nut A439 GR. D-2
18 Retaining Nut Carbon Steel
19 Handwheel Ductile Iron
20 Nut Carbon Steel
21 Screw Carbon Steel
22 Yoke A216 WCB
23 Nut A194 2H
24 Bolt A193 B7
25 Bearing Steel
26 Lantern Ring A276 410

class 900 gate valve 6 inch have thrust bearing

Thrust bearing for 6 inch and above

class 900 cast steel gate valve lantern ring

Lantern ring on request

class 900 cast steel gate valves 10 inch are gear operated

Gear operated for 10 inch and above



Class 900 Cast Steel Gate Valve Dimensions & Weight

Size Inch 2" 2.5" 3" 4" 6" 8" 10" 12"
DN 50 65 80 100 150 200 250 300
End to End Dimensions
(mm)		 L 368 419 381 457 610 737 838 965
L1 368 419 381 457 610 737 838 965
L2 371 422 384 460 613 740 841 968
Height (mm) H 620 705 737 825 1065 1219 1345 1840
Handwheel(mm) W 300 350 350 400 500 600 610 610
Weight, Kg RF 95 108 125 194 378 635 900 1550



Cast Steel Gate Valve Class 1500



Class 1500 Cast Steel Gate Valve

class 1500 cast steel gate valve drawing Cast Steel Gate Valve

Yoke for 6 inch and above

Typical Material

Item Part Name Material
1 Body A216 WCB
2 Seat Ring A105+STL
3 Disc A216 WCB+13Cr
4 Stem A182 F6a
5 Gasket SS 304+Graphite
6 Bonnet A216 WCB
7 Nut A194 2H
8 Bolt A193 B7
9 Bushing A276 410
10 Packing SS304+Graphite
11 Pin Carbon Steel
12 Bolt A307 GR.B
13 Gland A276 410
14 Gland Flange A216 WCB
15 Nut A194 2H
16 Grease Nipple Carbon Steel
17 Stem Nut A439 GR. D-2
18 Retaining Nut Carbon Steel
19 Handwheel Ductile Iron
20 Nut Carbon Steel
21 Screw Carbon Steel
22 Yoke A216 WCB
23 Nut A194 2H
24 Bolt A193 B7
25 Bearing Steel
26 Lantern Ring A276 410

class 1500 gate valve 6 inch have thrust bearing

Thrust bearing for 6 inch and above

class 1500 cast steel gate valve lantern ring

Lantern ring on request

Class 1500 cast steel gate valves 8 inch are gear operated

Gear operated for 8 inch and above



Class 1500 Cast Steel Gate Valve Dimension & Weight

Size Inch 2" 2.5" 3" 4" 6" 8" 10" 12"
DN 50 65 80 100 150 200 250 300
End to End Dimensions
(mm)		 L 368 419 470 546 705 832 991 1130
L1 368 419 470 546 705 832 991 1130
L2 371 422 473 549 711 842 1000 1146
Height(mm) H 695 705 770 872 1092 1400 1600 1840
Handwheel(mm) W 350 400 400 500 600 610 610 610
Weight, Kg RF 95 128 181 275 627 1000 2200 3300



Cast Steel Gate Valve Class 2500



Class 2500 Cast Steel Gate Valve DrawingClass 2500 cast steel gate valve drawingClass 2500 cast steel gate valves 6 inch and above have outside screw and yoke (OS & Y)

Yoke for 6 inch and above

Typical Material

Item Part Name Material
1 Body A216 WCB
2 Seat Ring A105+STL
3 Disc A216 WCB+13Cr
4 Stem A182 F6a
5 Gasket SS 304+Graphite
6 Bonnet A216 WCB
7 Nut A194 2H
8 Bolt A193 B7
9 Bushing A276 410
10 Packing SS304+Graphite
11 Pin Carbon Steel
12 Bolt A307 GR.B
13 Gland A276 410
14 Gland Flange A216 WCB
15 Nut A194 2H
16 Grease Nipple Carbon Steel
17 Stem Nut A439 GR. D-2
18 Retaining Nut Carbon Steel
19 Handwheel Ductile Iron
20 Nut Carbon Steel
21 Screw Carbon Steel
22 Yoke A216 WCB
23 Nut A194 2H
24 Bolt A193 B7
25 Bearing Steel
26 Lantern Ring A276 410

Class 2500 gate valve 6 inch have thrust bearing

Thrust bearing for 6 inch and above

Class 2500 cast steel gate valve lantern ring

Lantern ring on request

Class 2500 cast steel gate valves 6 inch are gear operated

Gear operated for Class 2500 and above



Class 2500 Cast Steel Gate Valve Dimensions & Weight

Size Inch 2" 2.5" 3" 4" 6" 8" 10" 12"
DN 50 65 80 100 150 200 250 300
End to End Dimensions
(mm)		 L 451 508 578 673 914 1022 1270 1422
L1 451 508 578 673 914 1022 1270 1422
L2 454 514 584 683 927 1038 1292 1445
Height(mm) H 700 750 887 1079 1450 1610 2076 2281
Handwheel (mm) W 350 400 400 500 600 610 610 610
Weight, Kg (mm) RF 135 210 271 506 1600 2450 4570 7150

Leave Us Your Info

Could you please kindly fulfill the following information when enquiring:

Valve type (ball, gate, globe, check etc.), valve size, pressure class, valve material, and end connection (flanged, butt welding etc.)

Gate Globe Check
Top Products
cast steel flanged floating ball valve

Floating Ball Valve

View More
3 piece forged steel trunnion ball valve API 6D

Trunnion Ball Valve

View More
cast steel gate valve gear operated

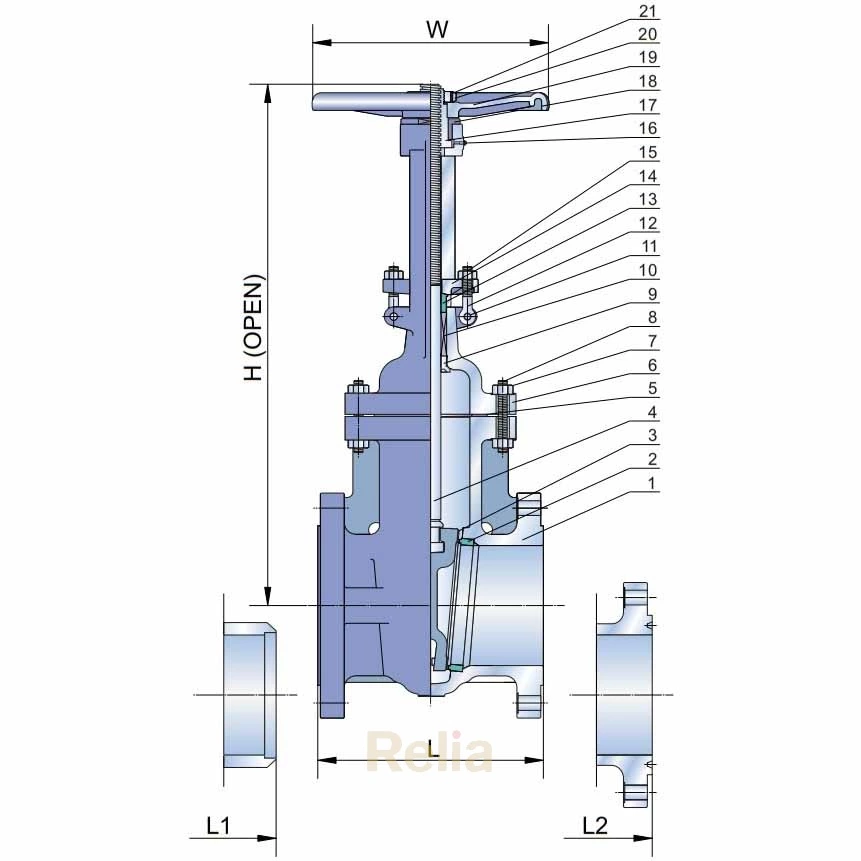

Cast Steel Gate Valve

View More
API 627 cast steel globe valve manufacturers

Cast Steel Globe Valve

View More
6 inch ball valve price

6 Inch Ball Valve

View More
8 inch ball valve price

8 Inch Ball Valve

View More
