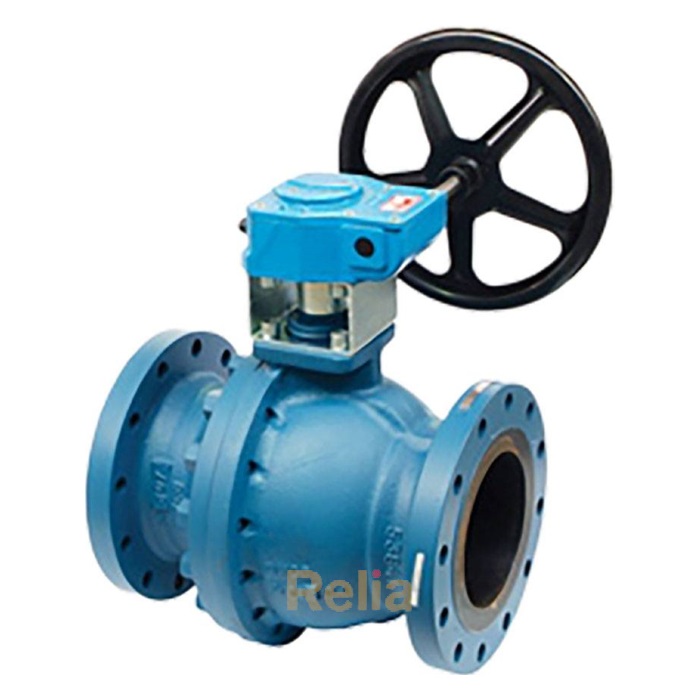

Name: Class 150 Ball Valve
Brand: Relia
SKU: 00079
Rating: 5.0 (1460 reviews)

Class 150 Working Pressure (for A105, WCB, LF2 body ball valve)

Temperature, ℃	Working Pressure (bar)
-29 to 38	19.6
50	19.2
100	17.7
150	15.8
200	13.8
250	12.1
300	10.2
325	9.3
350	8.4
375	7.4
400	6.5
425	5.5
450	4.6
475	3.7
500	2.8
538	1.4

Class 150 Ball Valve Test Pressure (for A105, WCB, LF2 body ball valve)

Test Type	Test Pressure	Test Fluid
Shell Test	29.4 bar	Water
High Pressure Seat Test	21.2 bar	Water
Low Temperature Seat Test	6 bar	Air

Class 150 Ball Valve Dimension and Weight

ASME Class 150 ball valve dimension and weight

SIZE		WEIGHT	A			B	B1	C	D	E	F	G	H	I
SIZE		WEIGHT	RF	RTJ	WE	B	B1	C	D	E	F	G	H	I
NPS	DN	(kg)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
2x 1-1/2"	50x40	25	178	191	216	38	51	152	140	95	145	450	—	—
2"	50	28	178	191	216	51	51	152	155	105	152	450	—	—
3x2"	80x50	30	203	216	283	51	77	191	155	105	152	450	—	—
3"	80	52	203	216	283	77	77	191	195	130	190	600	—	—
4x3"	100x80	61	229	241	305	77	102	229	195	130	190	600	—	—
4"	100	92	229	241	305	102	102	229	230	164	232	600	—	—
6x4"	150x100	100	394	406	457	102	152	279	230	164	232	600	—	—
6"	150	175	394	406	457	152	152	279	251	189	310	315	235	460
8x6"	200x150	200	457	470	521	152	203	343	251	189	310	315	235	460
8"	200	270	457	470	521	203	203	343	274	221	395	337	360	610
10x8"	250x200	310	533	546	559	203	254	406	274	221	395	337	360	610
10"	250	405	533	546	559	254	254	406	321	259	470	385	410	610
12x10"	300x250	485	610	622	635	254	305	483	321	259	470	385	410	610
12"	300	585	610	622	635	305	483	483	359	297	545	414	580	760
14x12"	350x300	645	686	698	762	305	337	535	359	297	545	414	580	760
16x12"	400x300	730	762	775	838	305	387	595	359	297	545	414	580	760
14"	350	805	686	698	762	337	337	535	392	326	610	447	580	760
16x14"	400x350	870	762	775	838	337	387	595	392	326	610	447	580	760
16"	400	1070	762	775	838	387	387	595	400	363	680	545	580	760
18x16"	450x400	1120	864	876	914	387	438	635	400	363	680	545	580	760
20x16"	500x400	1210	914	927	991	387	498	700	400	363	680	545	580	760
18"	450	1270	864	876	914	438	438	635	438	403	750	513	580	760
20x18"	500x450	1350	914	927	991	438	498	700	438	403	750	513	580	760
20"	500	1850	914	927	991	489	489	700	478	444	840	553	580	760
24x20	600x500	2100	1067	1080	1143	489	591	815	478	444	840	553	580	760
22"	550	2450	991	—	1092	540	540	750	520	487	925	585	580	760
24"	600	3180	1067	1080	1143	591	591	815	573	535	1015	663	643	760
30x24	750x600	3430	1295	—	1397	591	737	985	573	535	1015	663	643	760
26"	650	3770	1143	—	1245	635	635	870	595	633	1066	685	643	760
28"	700	4635	1244	—	1346	686	686	925	633	671	1142	723	643	760
30"	750	5370	1295	—	1397	736	736	985	687	705	1215	777	643	760
36x30"	900x750	6450	1524	—	1728	736	876	1170	687	705	1215	777	643	760
32"	800	6960	1371	—	1524	781	781	1060	751	751	1306	923	643	760
34"	850	7950	1473	—	1626	832	832	1110	781	787	1375	954	643	760
36"	900	8950	1524	—	1727	876	876	1170	815	818	1435	986	643	760
40"	1000	12730	1753	—	1956	978	978	1290	906	906	1613	1061	643	760
42"	1050	14450	1855	—	2083	1022	1022	1345	938	940	1680	1093	643	760
48"	1200	21750	2134	—	2388	1168	1168	1510	1062	1063	1926	1217	643	760
56"	1400	34300	2489	—	2489	1384	1384	1735	1225	1230	2260	1496	643	760
