26 Inch Ball Valve
26 inch ball valves, DN650, API 6D certificated. Double sealing: O-ring & gasket Combination ensures no leakage from body connection area. 26 inch ball valve at affordable prices.
- Design Feature
- Double Sealing
- Size
- 26" (DN650)
- Pressure Rating
- Class 150, 300, 600, 900
- Unit Price
- $9200-$91000
26 Inch Ball Valve Dimensions
(Class 150, 300, 600, 900)

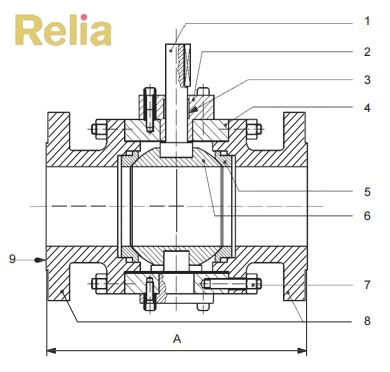

26 inch ball valve face to face dimensions (flanged RF)
26 inch ball valve end to end dimensions (welded ends)
26 inch ball valve face to face dimensions (flanged RTJ)
| inch | mm | Pressure Rating | Face to Face Dimension, inch (mm) (Full Bore and Reduced Bore Ball Valve) |
Minimum a Bore Diameter inch (mm) |
||
| Raised Face (A) | Weld End (B) | Ring Joint (C) | Full Bore Ball Valve | |||
| 26" | DN650 | Class 150 | 45.00 (1143) | 49.00 (1245) | — | 24.92 (633.0) |
| 26" | DN650 | Class 300 | 49.00 (1245) | 49.00 (1245) | 50.00 (1270) | 24.92 (633.0) |
| 26" | DN650 | Class 600 | 57.00 (1448) | 57.00 (1448) | 57.00 (1448) | 24.92 (633.0) |
| 26" | DN650 | Class 900 | 65.00 (1651) | — | 65.88 (1673) | 24.29 (617.0) |
| 26" | DN650 | Class 1500 | 76.5 (1943) | — | — | 23.38 (594.0) |
a There is no upper size limit for a valve bore
26 Inch Ball Valve Weight, in Kgs
(Class 150, 300, 600, 900)
| inch | mm | Pressure Rating | Trunnion Mounted Ball Valve (Full Bore) |
|
| Cast Steel | Forged Steel | |||
| 26" | DN650 | Class 150 | 1400 | 3200 |
| 26" | DN650 | Class 300 | 1750 | ... |
| 26" | DN650 | Class 600 | 3800 | ... |
| 26" | DN650 | Class 900 | ... | ... |
| 26" | DN650 | Class 1500 | ... | ... |
| 26" | DN650 | Class 2500 | ... | ... |
